Adjusting Feed Roll Springs

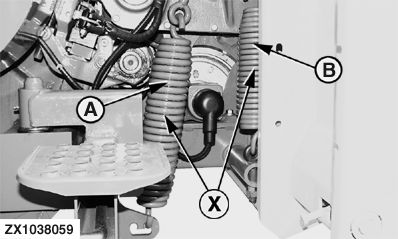

Tighten springs (A) and (B) until coils open 1 mm (0.04 in.) max; measure distance (X) at the middle coils of spring.

NOTE: If crop flow is not smooth (slipping) or quality of cut is poor, evenly increase feed roll spring tension.

NOTE: When harvesting grass in wet conditions, remove the front feed roll spring on both sides. Do the same when harvesting large windrows.

Re-install and adjust the front feed roll spring on both sides when harvesting corn.

A-Rear Feed Roll Springs
B-Front Feed Roll Springs - All models except 7200 and 7300 from SN 508100
X-Distance to measure
