Moving Kernel Processor into Working Position

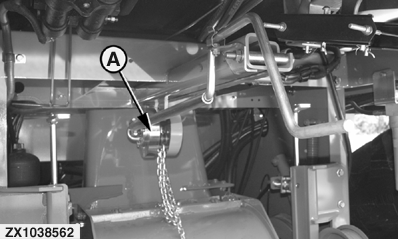

  • Lift kernel processor slightly by means of chain hoist (A).
    ZX1038562

OUCC002,00020F1 -19-09NOV05-1/4

    On Machines up to SN 508099:

    Lever in work position = Unlock kernel processor to lower (from non-operating position to work position).

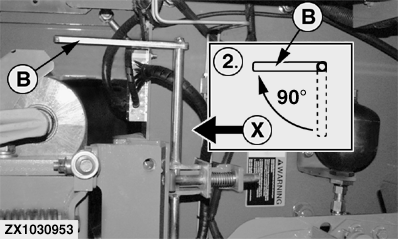

  • Rotate lever (B) 90° to the front.
  • Lower kernel processor by means of chain hoist until it is secured in lower attaching pins.

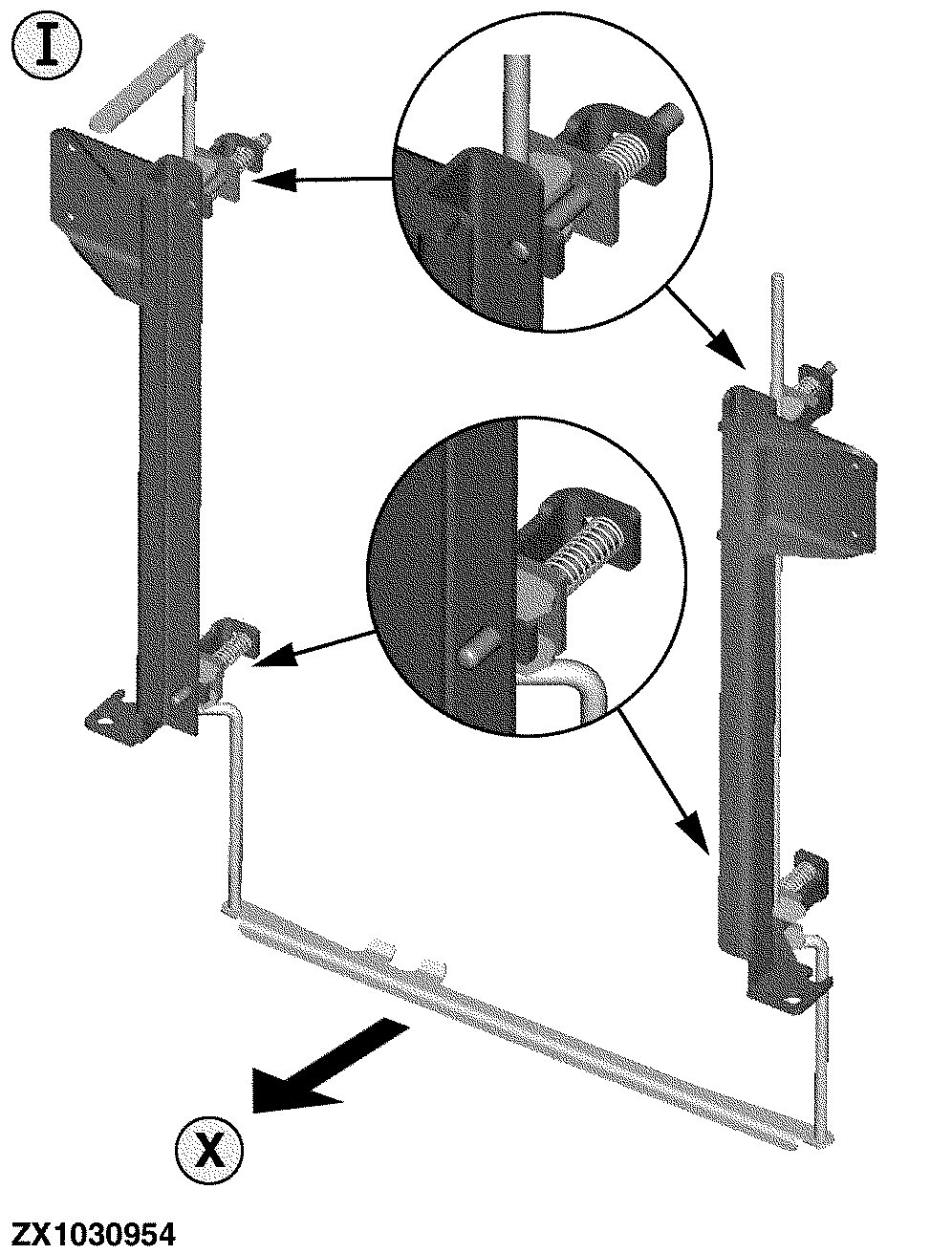

    I-Locking Device - Work Position
    X-Direction of Travel
    B-Lever

    ZX1030954
    ZX1030953

OUCC002,00020F1 -19-09NOV05-2/4

      On Machines From SN 508100:

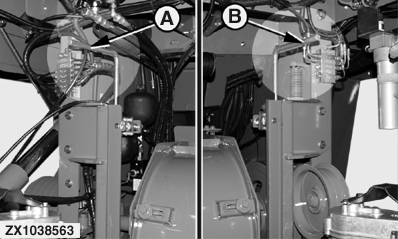

      Levers (A) and (B) in work position = Unlock kernel processor to lower (from non-operating position to work position).

    • Rotate levers (A) and (B) 90° to the front, as shown.
    • Lower kernel processor by means of chain hoist until it is secured in lower attaching pins.


      A-R.h. Locking Device - Work Position
      B-L.h. Locking Device - Work Position

    ZX1038563

OUCC002,00020F1 -19-09NOV05-3/4

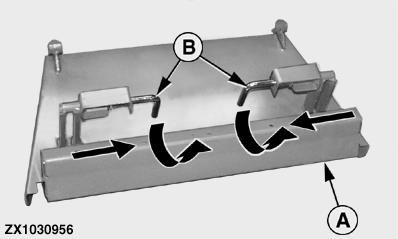

      • Hold upper section of grass transition chute with one hand.
      • On both sides move lock (B) inward and rotate 90° (to the bottom).
      • Disengage upper section (A).


      A-Upper Section
      B-Lock

    ZX1030956

OUCC002,00020F1 -19-09NOV05-4/4
