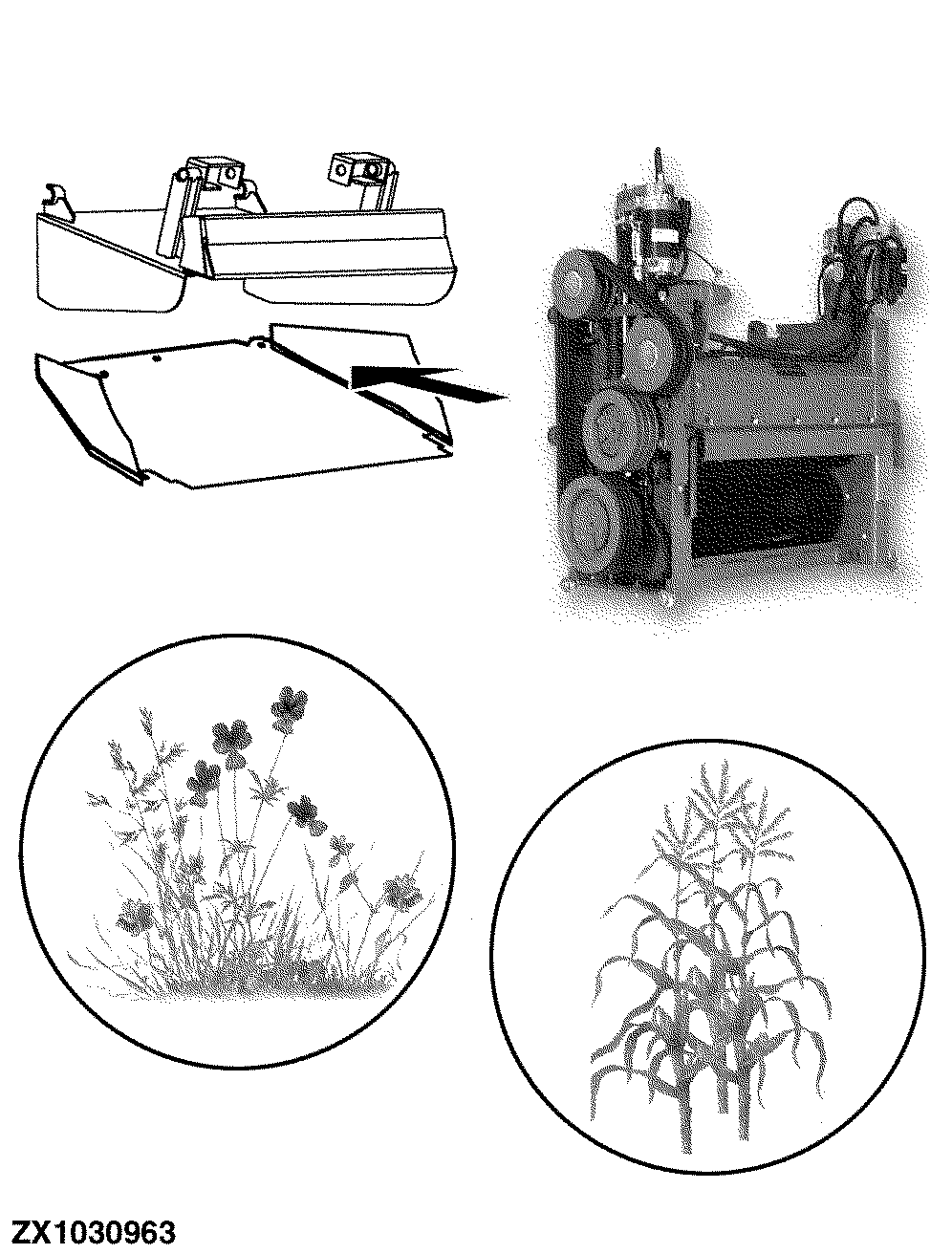

Changing From Kernel Processor to Grass Transition Chute - From SN 508100

NOTE: To change from kernel processor to grass transition chute, reverse the order used for conversion from grass transition chute to kernel processor.

IMPORTANT: Locking device lever must face to the left when raising kernel processor to non-operating position.

Lever in non-operating position = Unlock kernel processor to raise from work position to non-operating position.

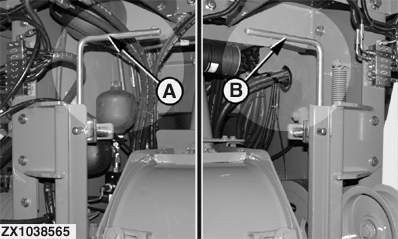

Rotate levers (A) and (B) 90° to the rear, as shown.

Raise kernel processor by means of chain hoist until it is secured in upper attaching pins.

A-R.h. Locking Device - Non-Operating Position
B-L.h. Locking Device - Non-Operating Position
