Adjusting Optional Pump Element for Flow Control

Adjusting Flow Rate:

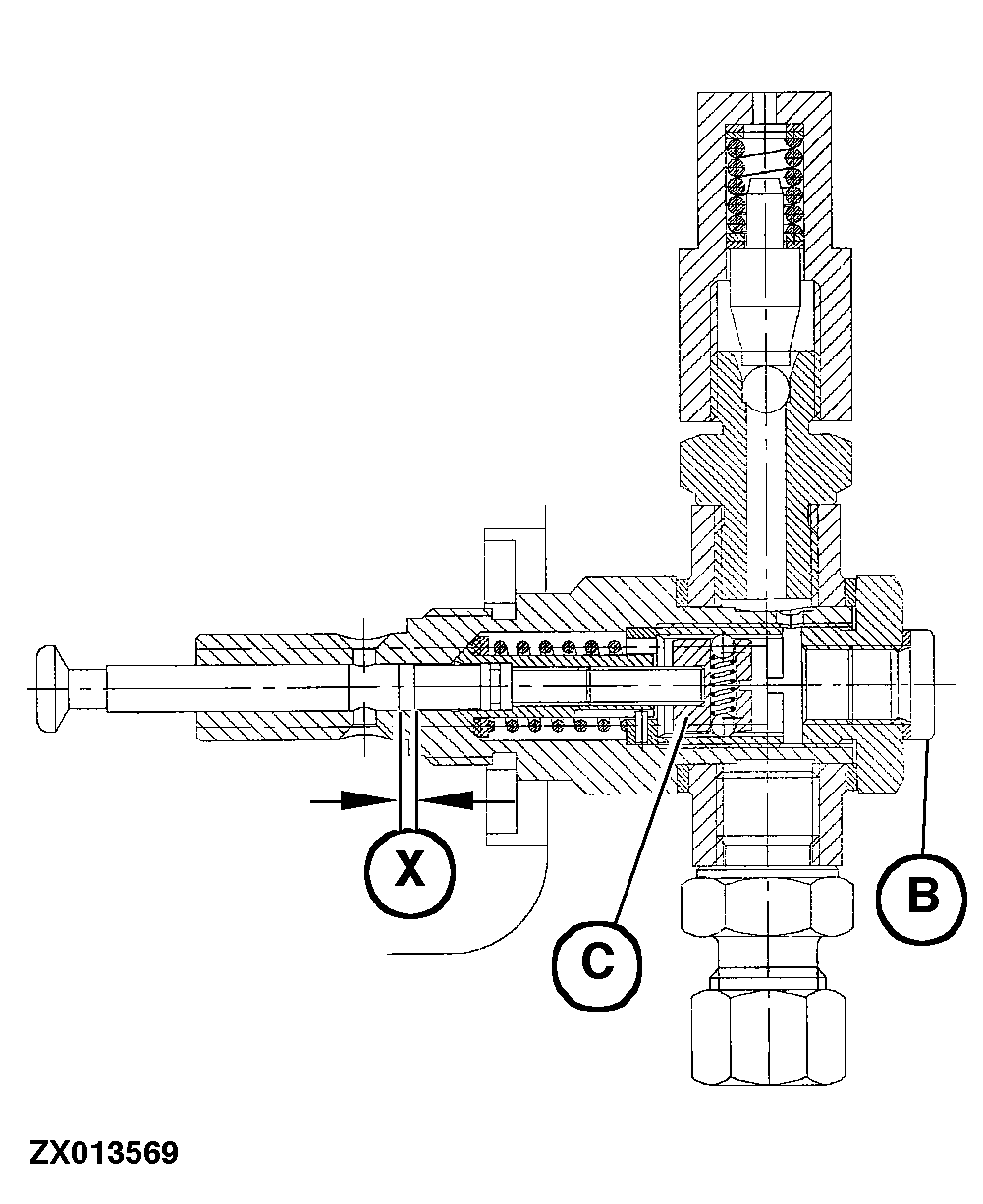

Remove main line (B).

Use a screwdriver to adjust metering plunger (C).

Basic (factory) setting is 100 % flow, i.e. detent "0 " is selected.

Rotating plunger clockwise decreases flow (one detent corresponds to approx. 11 %).

Rotating plunger counterclockwise increases flow.

Max. stroke (X) of plunger corresponds to 6 detents (approx. 66 %).

2 detents (approx. 22 %) correspond to one plunger revolution.

After adjustment, tighten main line (B).

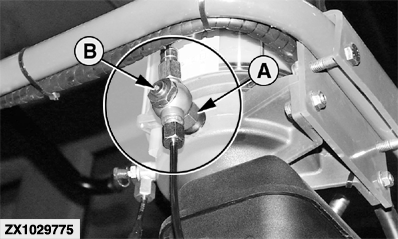

A-Optional Pump Element
B-Main Line
C-Metering Plunger
X-Stroke

OUCC002,00020F7 -19-08NOV05-1/1
