Cooling Elements - Access and Cleaning

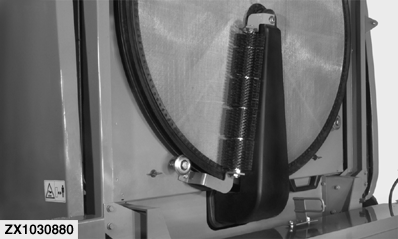

Open rotary radiator screen.

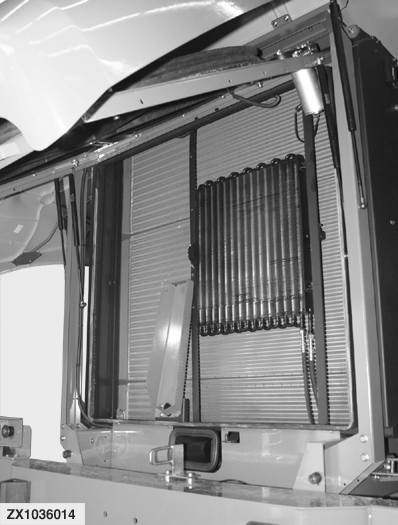

Clean outer side of cooling fins with a brush. When very dirty, use compressed air, directing air in opposite direction to normal air flow.

ZX1030880
ZX1036014
