OMZ82299: 7200, 7300, 7400, 7500, 7700 and 7800 Self-Propelled Forage Harvesters(507479- ), Block File: OUCC002_00020FB_19

A-Fan
B-Radiator
C-Intercooler
D-Air Conditioning Condenser
E-Hydraulic Oil Cooler
X-Direction of Travel

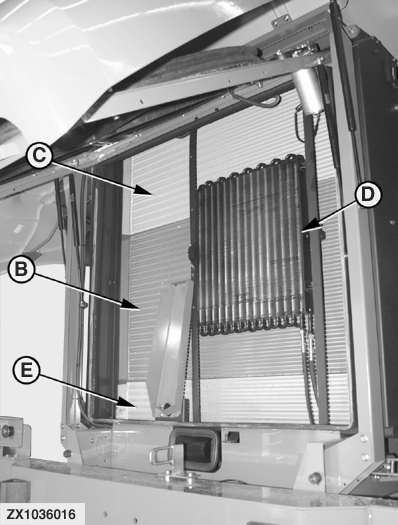

Cooling Elements (7200, 7300 up to SN 508099)

ZX1036016

Cooling Elements (7300, 7400, 7500, 7700 and 7800)

OUCC002,00020FB -19-08NOV05-1/1
