Remove and Install High Intensity Discharge (Xenon) Lights (Optional)

CAUTION: Avoid serious injury or death from electric shock or lamp explosion. This lamp is powered by 25,000 volts. Do not begin installation of Xenon lights (HID) unless the lights are turned off, the engine is turned off, the key is removed, and appropriate eye protection is worn.

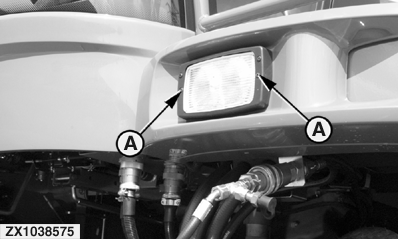

Remove fixing screws (A) of cab platform HID lights.

A-Fixing screws

OUCC002,00020FF -19-08NOV05-1/9

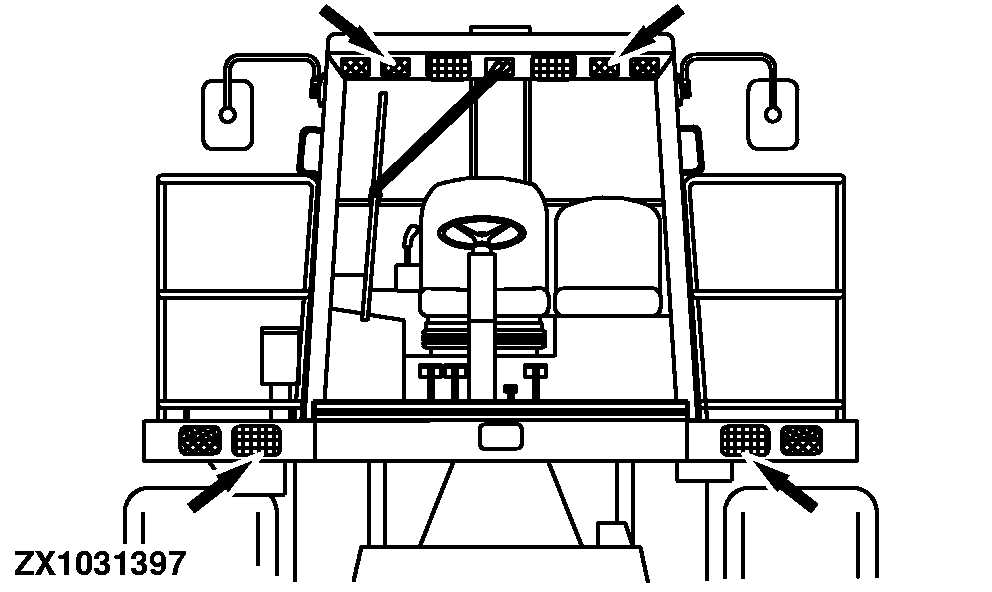

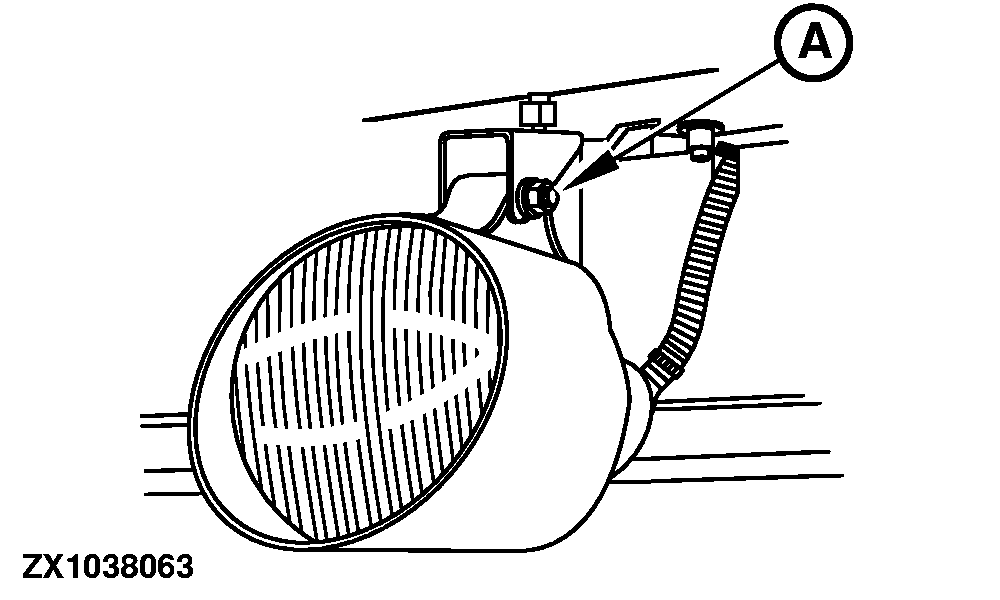

Up to SN 508099: Remove adjusting screws (A) of cab roof HID lights.

A-Adjusting screw

OUCC002,00020FF -19-08NOV05-2/9

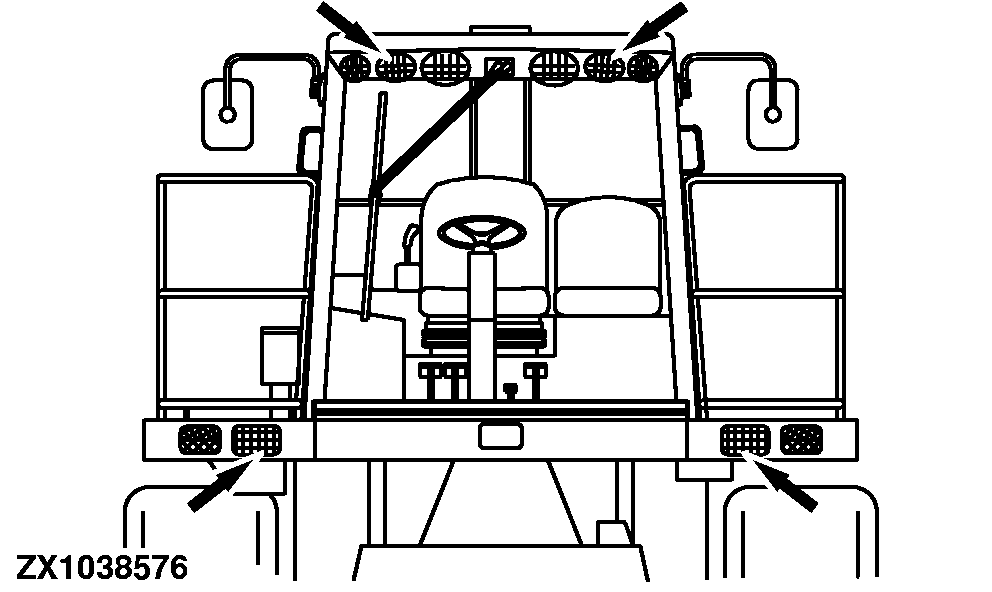

From SN 508100: Remove fixing screw (A) of cab roof HID lights.

A-Fixing screw

OUCC002,00020FF -19-08NOV05-3/9

IMPORTANT: To prevent equipment damage, make sure machine lights are turned off before disconnecting wiring harness connector (A).

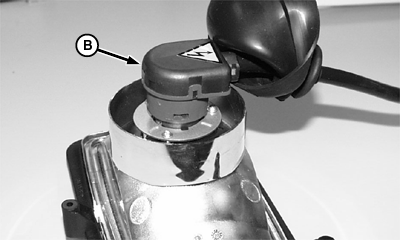

Remove rubber boot (A) from light.

Disconnect ballast wiring harness connector from light by turning counterclockwise.

Remove and replace bulb.

A-Rubber boot
B-Ballast wiring harness connector

OUCC002,00020FF -19-08NOV05-4/9

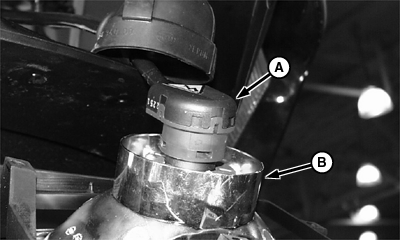

Attach ballast wiring harness connector (A) to light assembly (B).

A-Ballast wiring harness connector
B-Light assembly

OUCC002,00020FF -19-08NOV05-5/9

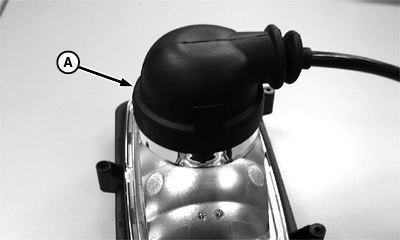

Slide rubber boot (A) onto light assembly.

A-Rubber boot

OUCC002,00020FF -19-08NOV05-6/9

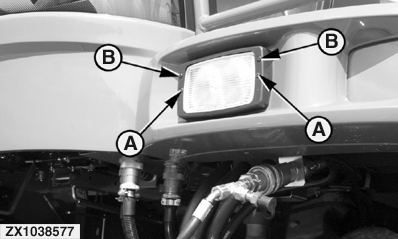

Install light assembly onto cab platform and retain with fixing screws (A).

Adjust light on cab platform with adjusting screws (B) as needed.

A-Fixing screws
B-Adjusting screws

OUCC002,00020FF -19-08NOV05-7/9

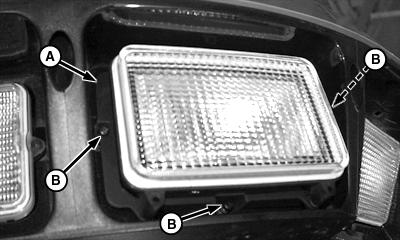

Up to SN 508099: Install light assembly (A) onto cab roof and retain with adjusting screws (B).

Adjust light with adjusting screws as needed.

A-Light assembly
B-Adjusting screws

OUCC002,00020FF -19-08NOV05-8/9

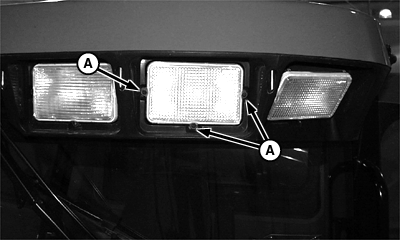

From SN 508100: Install light assembly onto cab roof and retain with fixing screws (A).

Adjust light on cab roof with screw (A) as needed.

A-Fixing screws

OUCC002,00020FF -19-08NOV05-9/9
