Cab Head Light Bulb Replacement and Adjustment - Up to SN 508099

CAUTION: Read Safety Rules When Replacing Halogen Bulbs in this section.

NOTE: Center two head lamps are infrared. All others are halogen lamps.

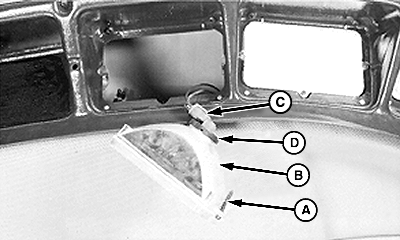

Remove three screws (A) evenly and remove headlamp (B).

Disconnect wiring (C). Clean dirt from headlamp.

Push in and twist retainer ring (D) counterclockwise. Pull bulb straight out.

When installing headlamp, adjust as follows:

IMPORTANT: Overtightening the screws until they bottom out can break the headlamp.

Start with the two end screws first, then the bottom screw last. Adjust the screws until all three tabs are flush with the panel.

A-Screws
B-Headlamp
C-Wiring
D-Retainer Ring

OUCC002,0002100 -19-08NOV05-1/1
