Cab Head Light Bulb Replacement and Adjustment - From SN 508100

CAUTION: Read Safety Rules When Replacing Halogen Bulbs in tis section.

NOTE: Center two head lamps can be HID-Xenon. All others are halogen lamps.

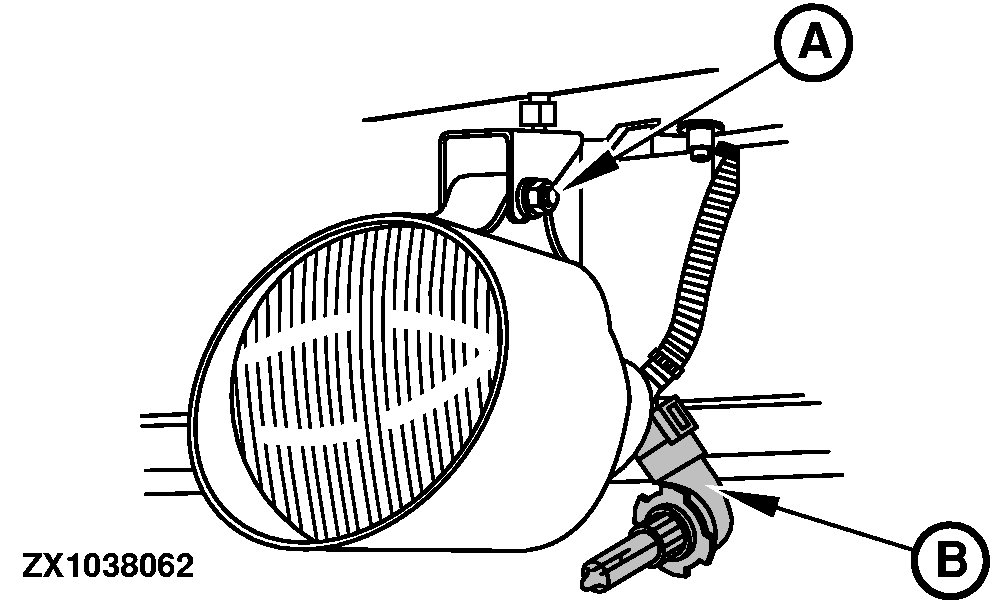

Loosen screw (A) and rotate flood light (as necessary) to access backside of light.

Remove rubber cover.

Disconnect wiring harness plug.

Rotate bulb (B) counterclockwise approximately 1/4 turn and remove.

Install bulb in reverse order of removal.

A-Screw
B-Bulb

OUCC002,0002101 -19-08NOV05-1/1
