Activating Metal Detector - Four-Speed LOC
Start engine.

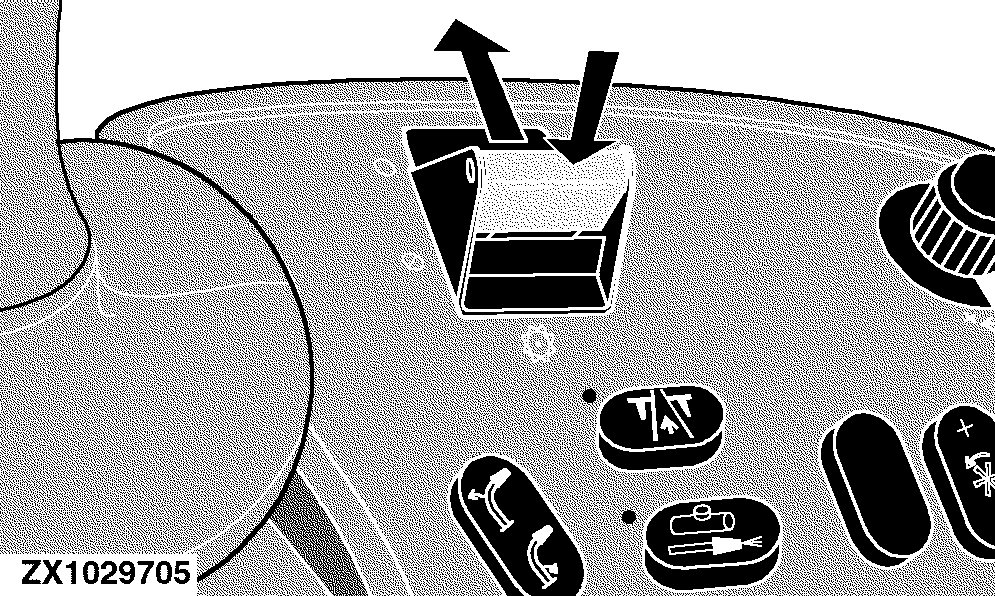

Engage main clutch.
|
|
|
|
OUCC002,000210A -19-16NOV05-1/5
|
|
|
OUCC002,000210A -19-16NOV05-2/5
|
|

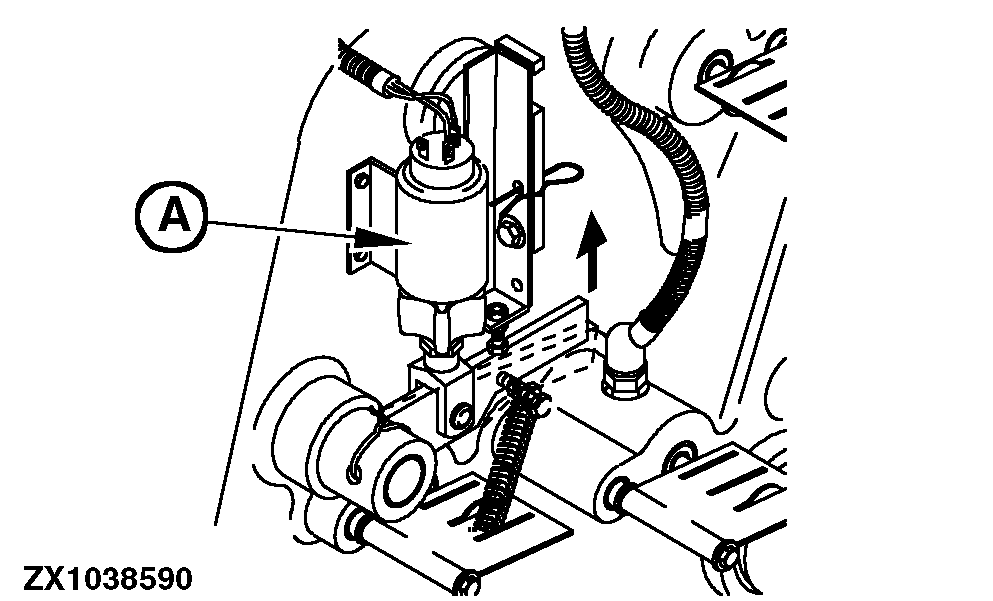

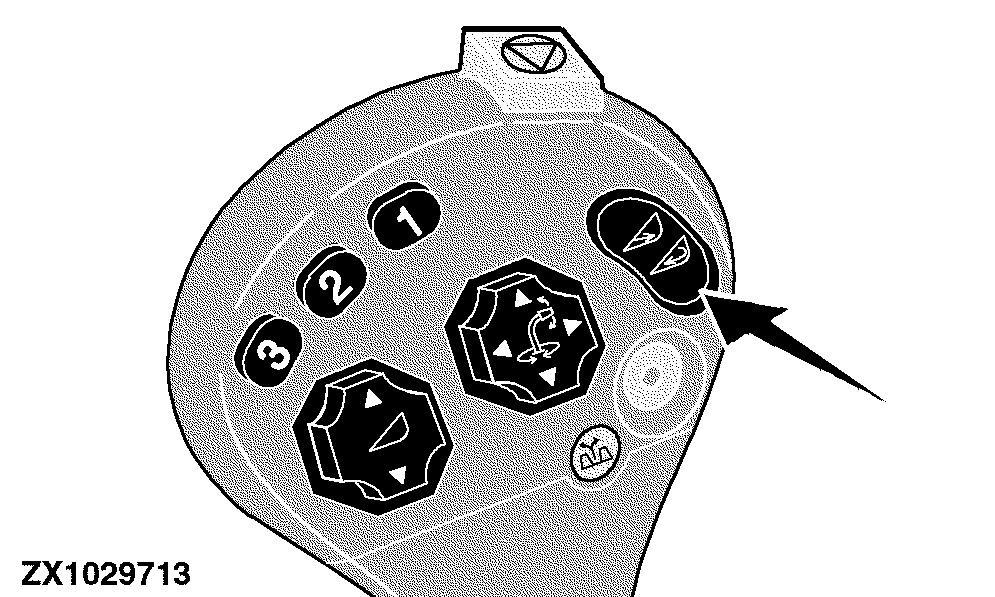

By reversing, locking pawl magnetic switch (A) is supplied with current and disengages locking pawl in the length-of-cut transmission.
A-Locking Pawl Magnetic Switch
|
|
|
|
OUCC002,000210A -19-16NOV05-3/5
|
|

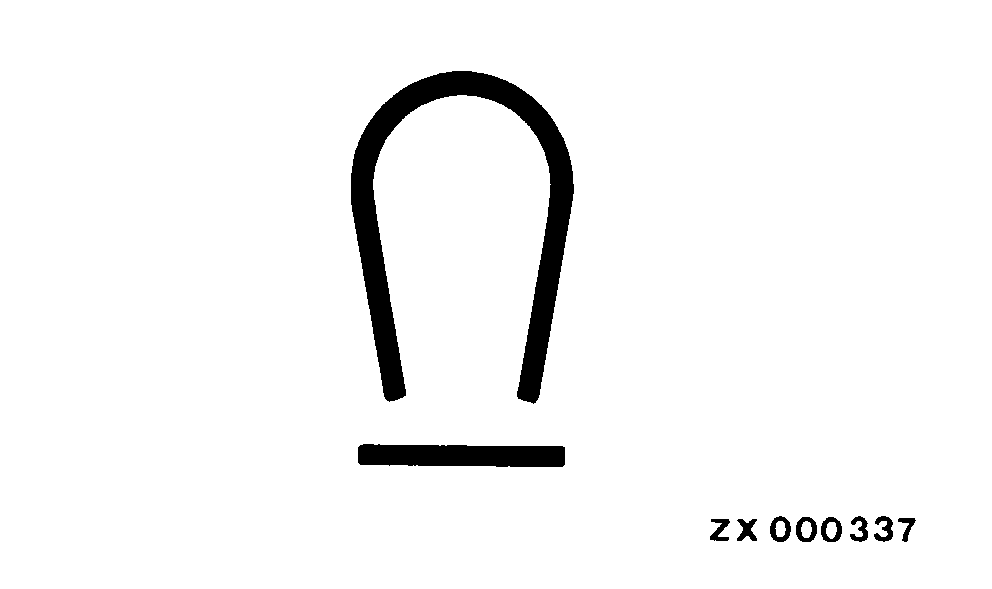

NOTE:
The metal detector indicator lights will glow and the warning signal will be heard.
|
|
|
|
OUCC002,000210A -19-16NOV05-4/5
|
|

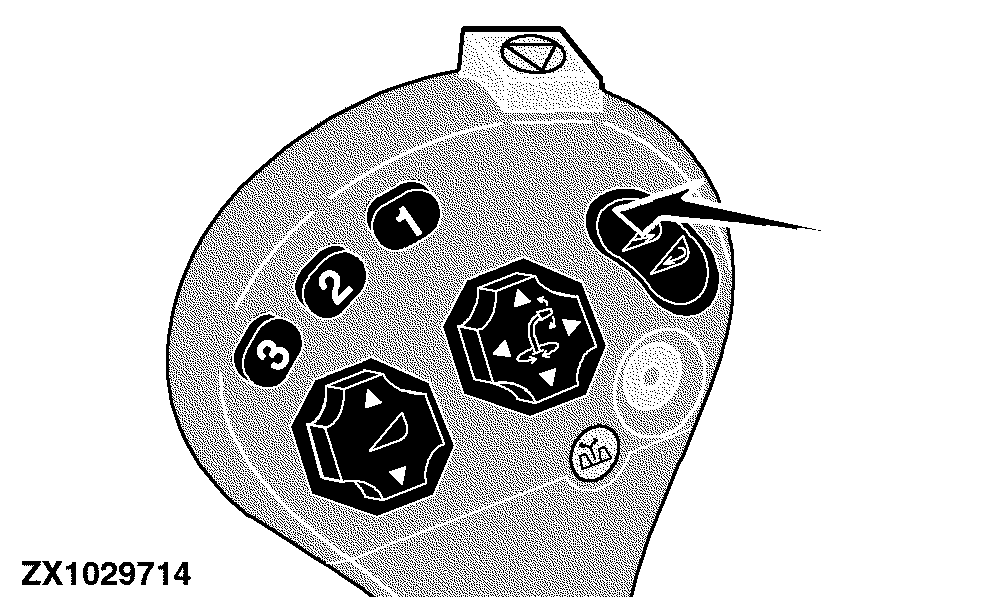

Engage feed rolls (components rotate in forward direction).
|
|
|
|
