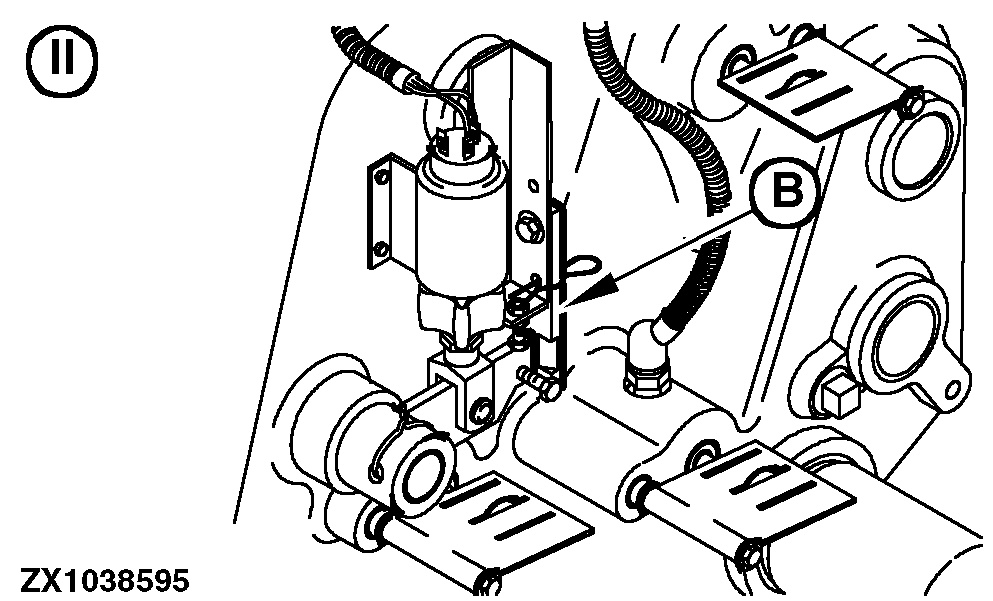

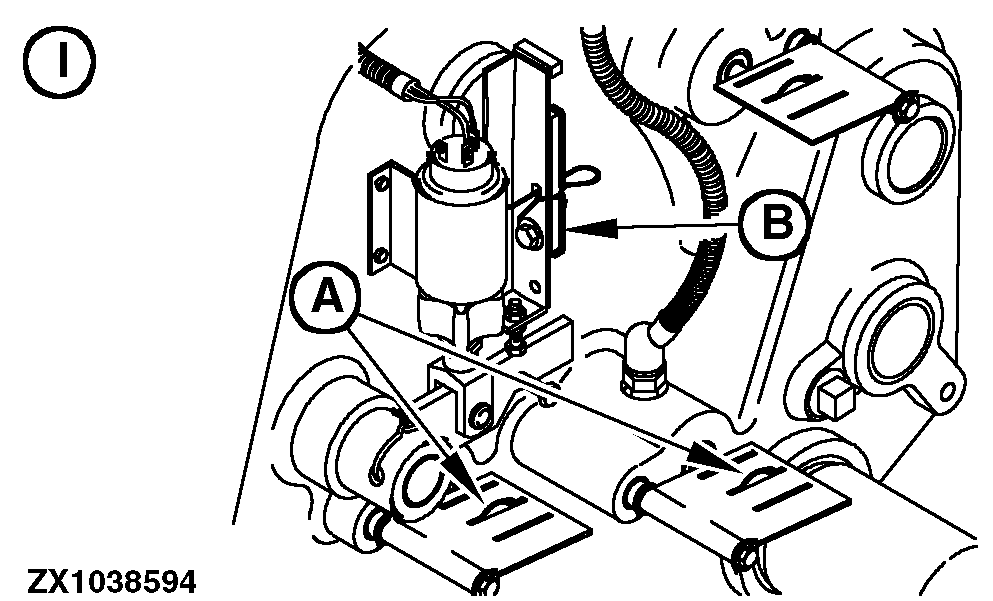

Checking Adjustment - Four-Speed LOCPerform the following steps: 1. Move the two front shift rods (A) at length-of-cut transmission into neutral position.2. Tongue (B) is pointing upward (position "Operation With Metal Detector"). Locking pawl magnetic switch must be in the down position (i.e. not supplied with current) (I). It should not be possible to turn the feed rolls forward by hand. 3. Move tongue (B) downward (position "Operation Without Metal Detector") (II). It should now be possible to turn the feed rolls forward by hand.
|
|
