Sockets

Liquid injection pump outlet

Powered via fuse 1F6 (30 amps.).

Running liquid injection pump is only possible with:

  • System in field operating mode
  • Self-Propelled Forage Harvester is driving forward
  • Ground speed is greater than 2 km/h (1.24 mph)
  • Header is in harvesting position
  • Feedrolls turning in forward direction
  • Liquid injection pump switch is pressed

If one of the above conditions is not met, the electronic system will release the power control relay and thus power for the injection pump will be removed from the outlet.

Whenever power for the injection pump is supplied to the liquid injection pump outlet, status information will be displayed by an indicator light at the corner post.

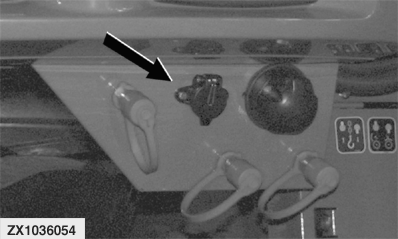

ZX1036054

OUCC020,0001EB9 -19-19JUL04-1/7

Electric outlet load center

This socket is always powered from the battery via fuse 3F9 (15 amps.)

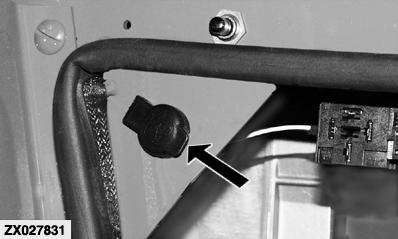

ZX027831

OUCC020,0001EB9 -19-19JUL04-2/7

Electric Socket for Trailer

This outlet provides switched battery power via fuse 1F22 (15 amps.) and the following signals:

  • Turn lights
  • Hazard lights
  • Stop lights

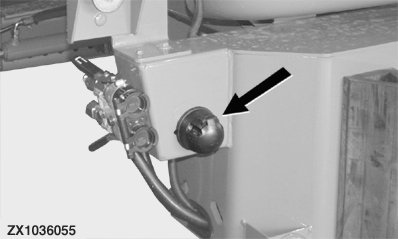

ZX1036055

OUCC020,0001EB9 -19-19JUL04-3/7

Electric Socket for Reel / Cornhead Lighting

This socket provides the following signals:

  • Turn lights
  • Position lights

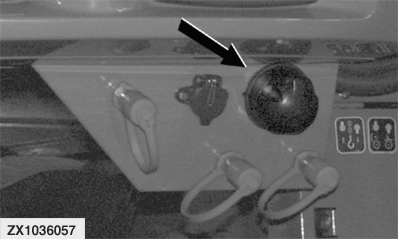

ZX1036057

OUCC020,0001EB9 -19-19JUL04-4/7

Electric Socket for Row Guidance

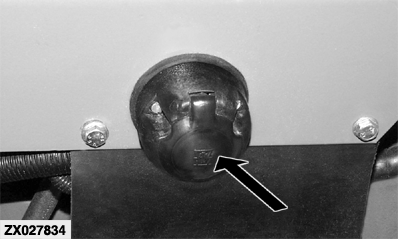

ZX027834

OUCC020,0001EB9 -19-19JUL04-5/7

Outlet in armrest

This outlet provides switched power via fuse 1F22 (15 amps.).

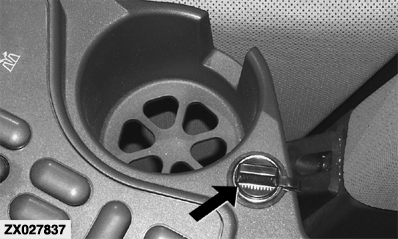

ZX027837

OUCC020,0001EB9 -19-19JUL04-6/7

Power strip

This outlet provides unswitched battery power (6 outlets) via fuse 3F6 (30 amps.).

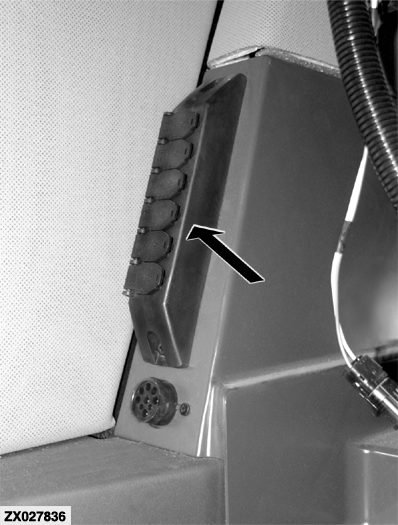

ZX027836
