OUCC020,0001ED0 -19-26JUL04-1/6

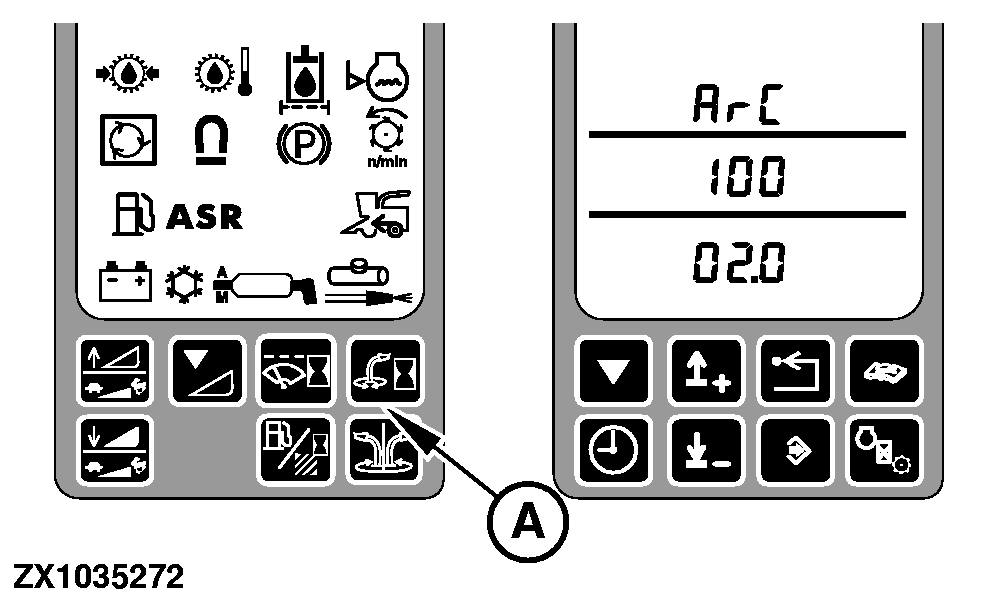

Quick Calibration Switch - ARC 100

Press switch (A) in order to get access to the input calibration address ARC 100 immediately - Spout Rotate Fast Delay Calibration.

For detailed calibration procedure see "Address ARC 100 Calibration - Spout Rotate Fast Delay Configuration" in this section.

OUCC020,0001ED0 -19-26JUL04-2/6

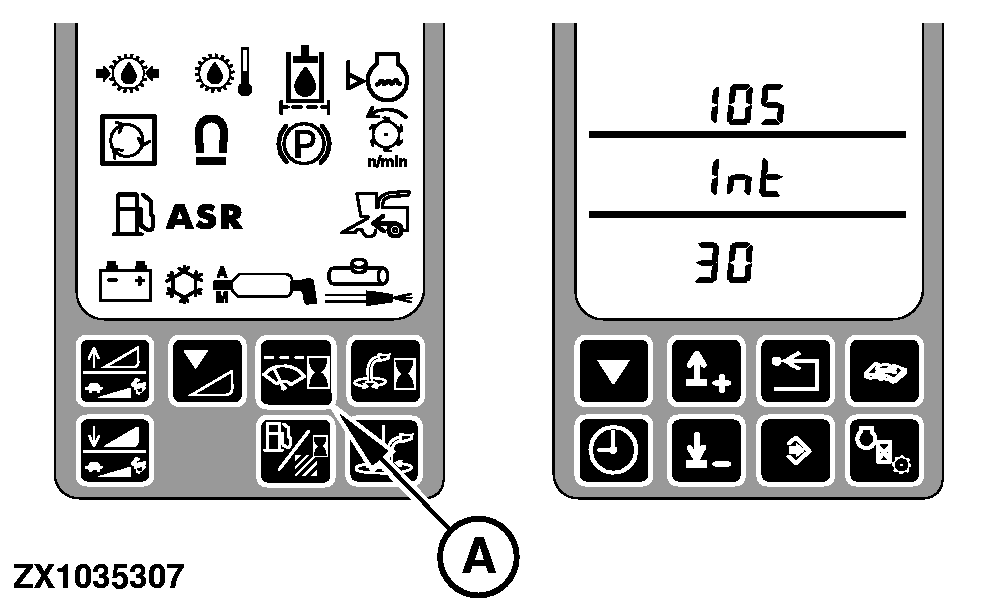

Quick Calibration Switch - RCP 105

Press switch (A) in order to get access to the input calibration address RCP 105 immediately - Intermittent Wiper Time Calibration.

For detailed calibration procedure see "Address RCP 105 Calibration - Intermittent Wiper Interval" in this section.

OUCC020,0001ED0 -19-26JUL04-3/6

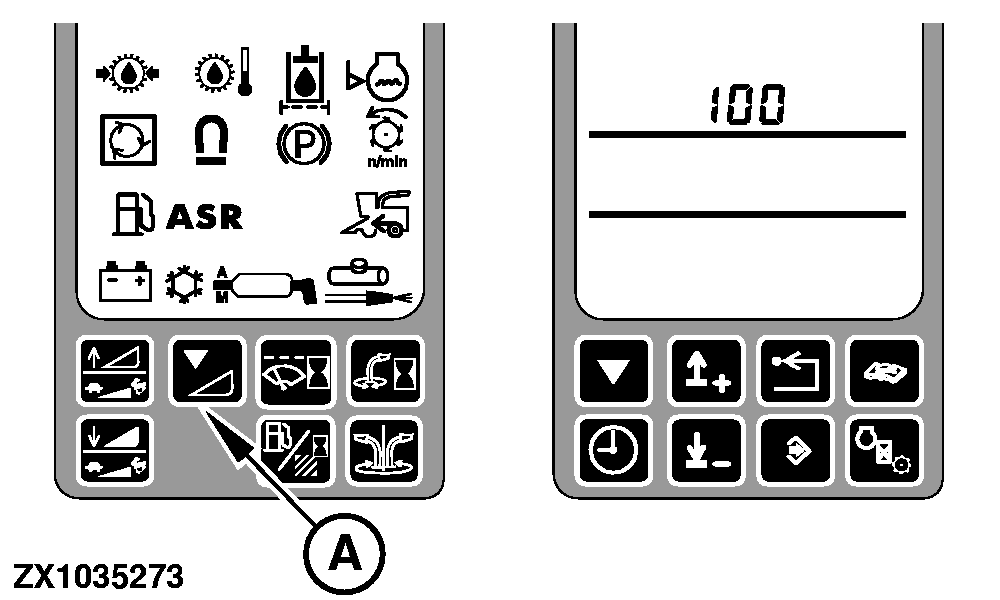

Quick Calibration Switch - SPF 100

Press switch (A) in order to get access to the interactive calibration address SPF 100 immediately - Header Calibration.

For detailed calibration procedure see "Address SPF 100 Calibration - Header Calibration" in this section.

OUCC020,0001ED0 -19-26JUL04-4/6

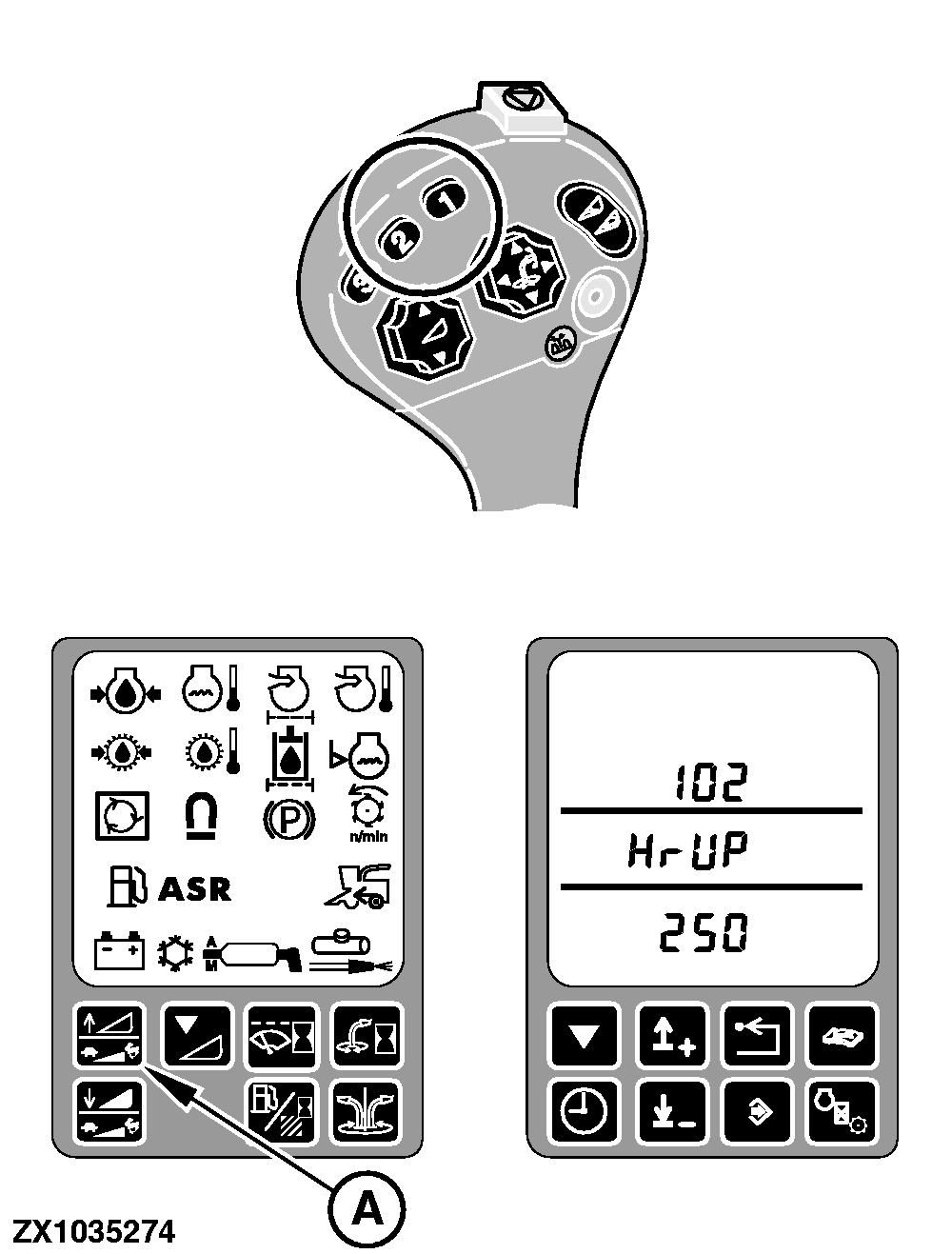

Quick Calibration Switch - SPF 102 (Working in Return to Position Mode)

Press switch (A) in order to get access to the interactive calibration address SPF 102 immediately - Header Raise Rate Calibration.

For detailed calibration procedure see "Address SPF 102 Calibration - Header Raise Rate" in this section.

OUCC020,0001ED0 -19-26JUL04-5/6

Quick Calibration Switch - SPF 103 (Working in Return to Position Mode)

Press switch (A) in order to get access to the interactive calibration address SPF 103 immediately - Header Lower Rate Calibration.

For detailed calibration procedure see "Address SPF 103 Calibration - Header Lower Rate" in this section.

OUCC020,0001ED0 -19-26JUL04-6/6
