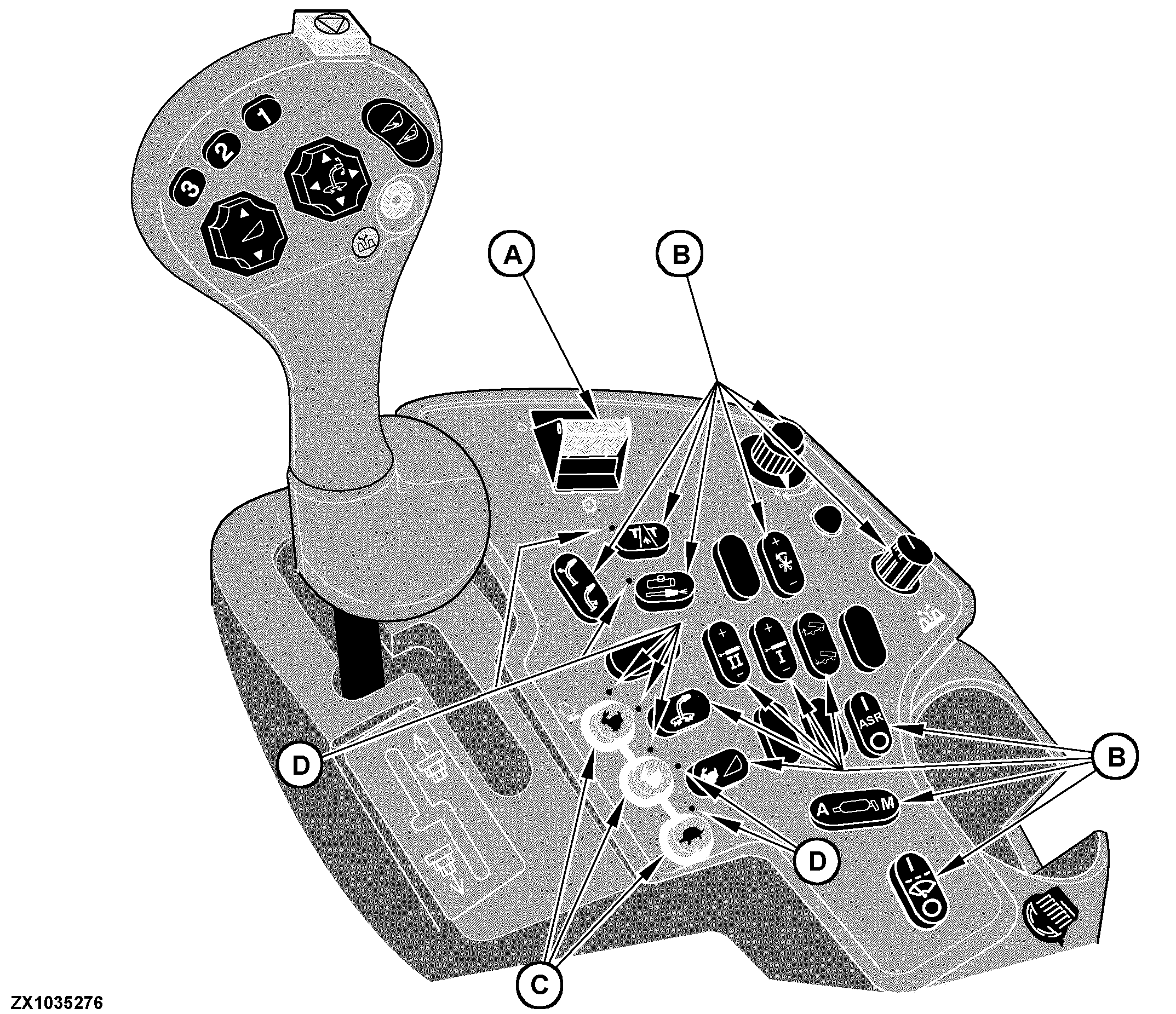

Before operating this forage harvester for the first time, become familiar with the switches and controls. These controls are color "coded" to help you quickly locate them when operating the forage harvester.

Yellow (A) - drive engagement.

Black (B) - operating adjustments and controls.

Orange (C) - engine speed.

Green (D) - activation indicators

OUCC020,0001ED1 -19-26JUL04-1/1
