Header Raise / Lower Switch

Raising or lowering harvesting unit is only possible with:

• Engine running (alternator working)
• Road safety switch in field position

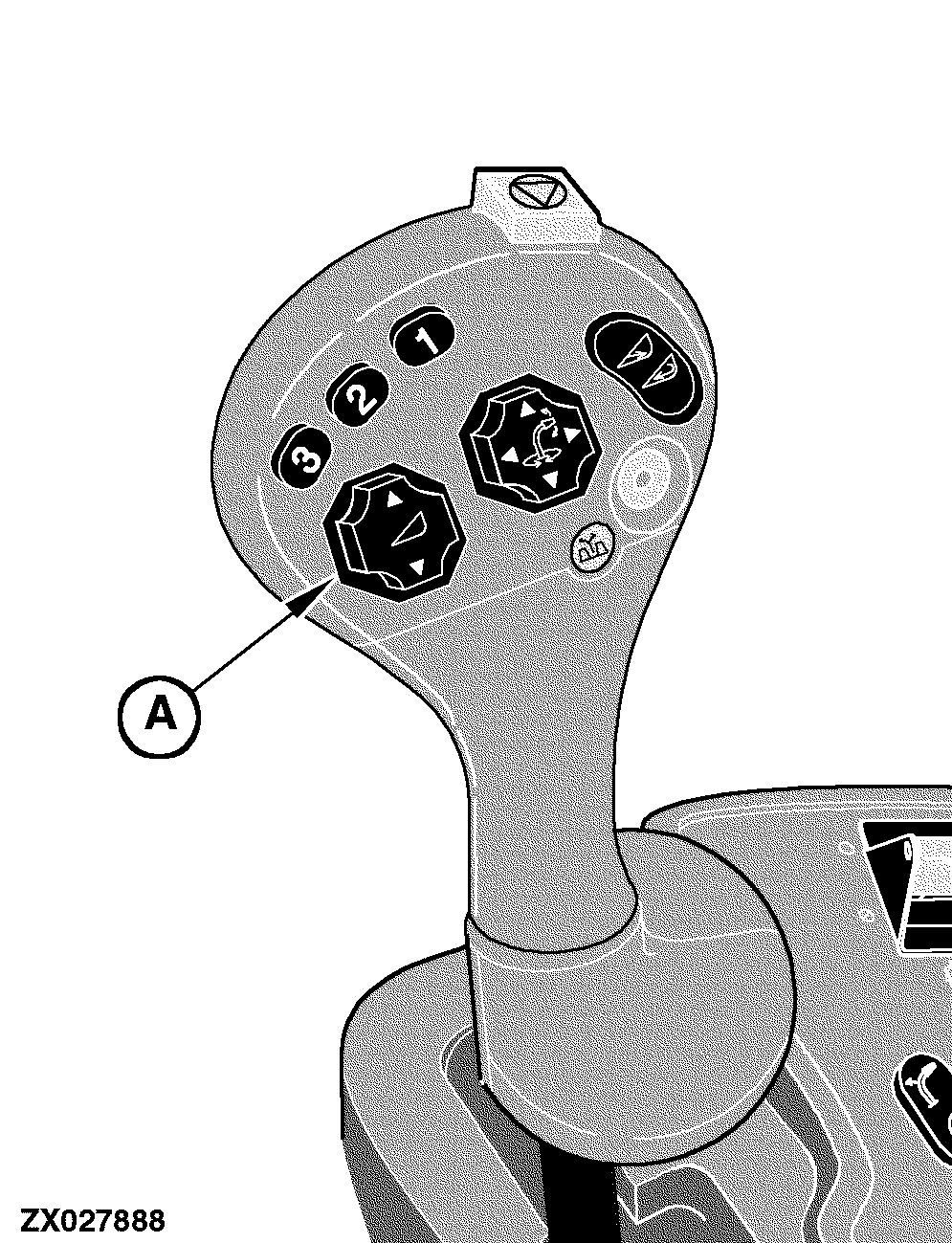

Press and hold top of switch (A) to raise header.

Press and hold bottom of switch (A) to lower header.

Manual Header Height Adjustment

While raising and lowering the harvesting unit the header height information is displayed at the performance monitor.

OUCC020,0001EDB -19-26JUL04-1/2

To calibrate the speed for header raise and lower use the quick calibration switches (A) or (B) or enter the following addresses manually:

• Header raise rate - Address SPF 102
• Header lower rate - Address SPF 103

NOTE: For detailed calibration information see Section "Calibration Procedures" at the appropriate addresses.

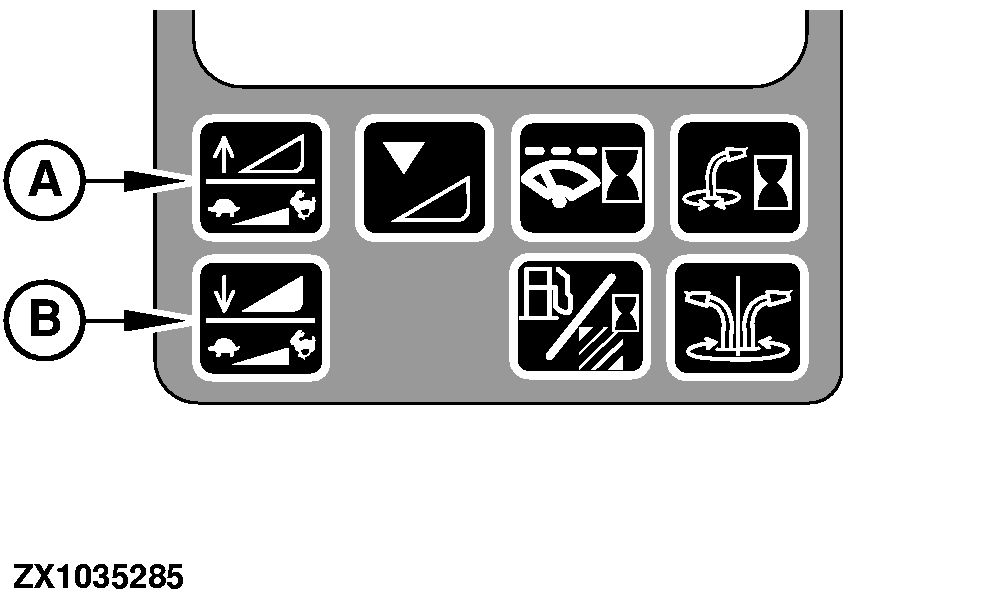

A-Quick Calibration Switch - Address SPF 102
B-Quick Calibration Switch - Address SPF 103
