Address ARC 100 Calibration - Spout Rotate Fast Delay Configuration

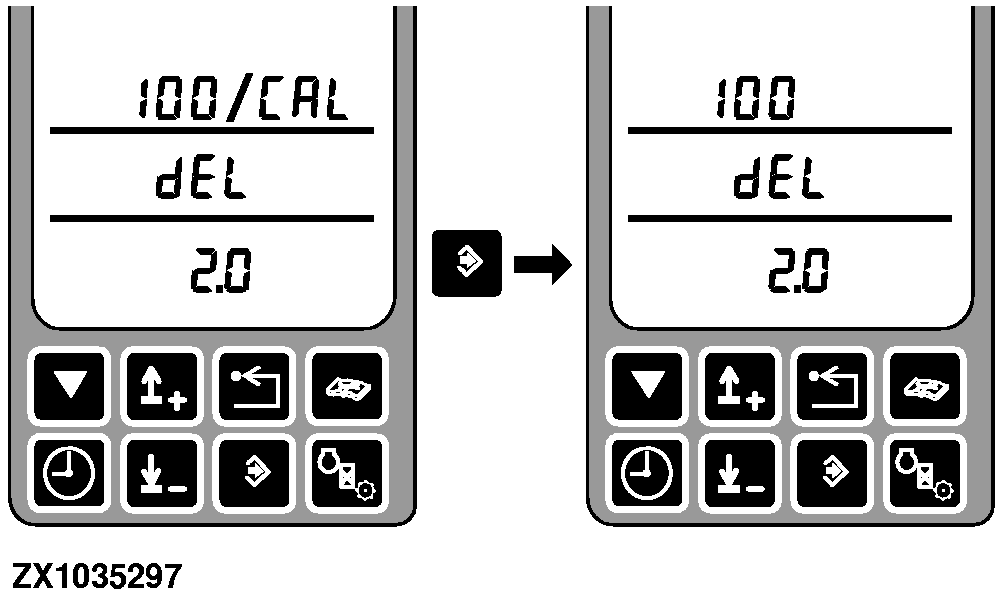

After entering this address the display shows the address and the value.

Value - 0 disables spout rotate fast.

Value greater than 0 - defines the delay in seconds before the armrest control unit requests spout rotate fast.

Default value - 2.0

Use the input control knob to change the value.

OUCC020,0001EE7 -19-09AUG04-1/2

Press the enter switch to store the value.

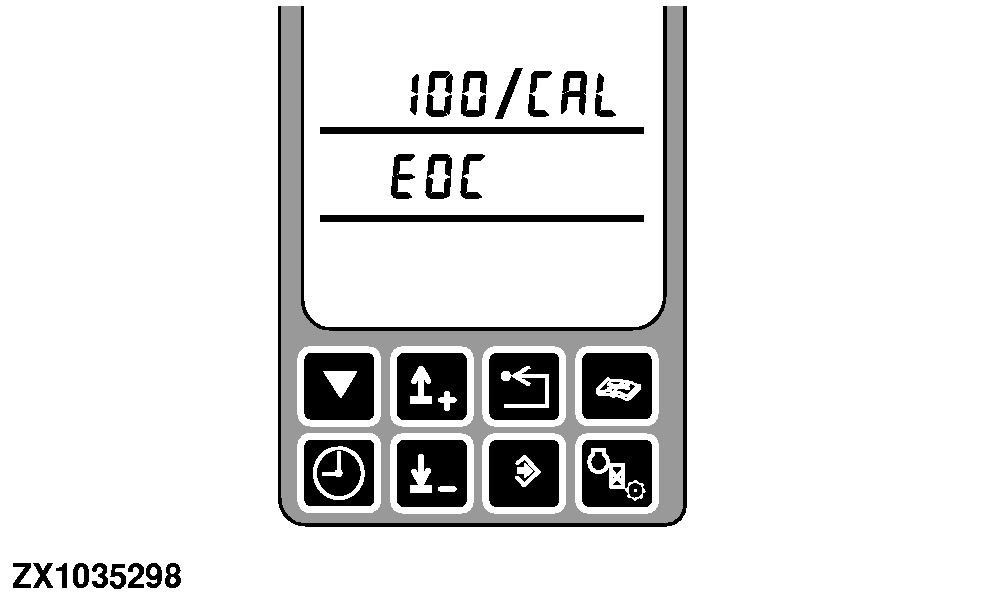

EOC will display the end of calibration mode.

OUCC020,0001EE7 -19-09AUG04-2/2
