Address SPF 102 Calibration - Header Raise Rate

Ignition is switched on.

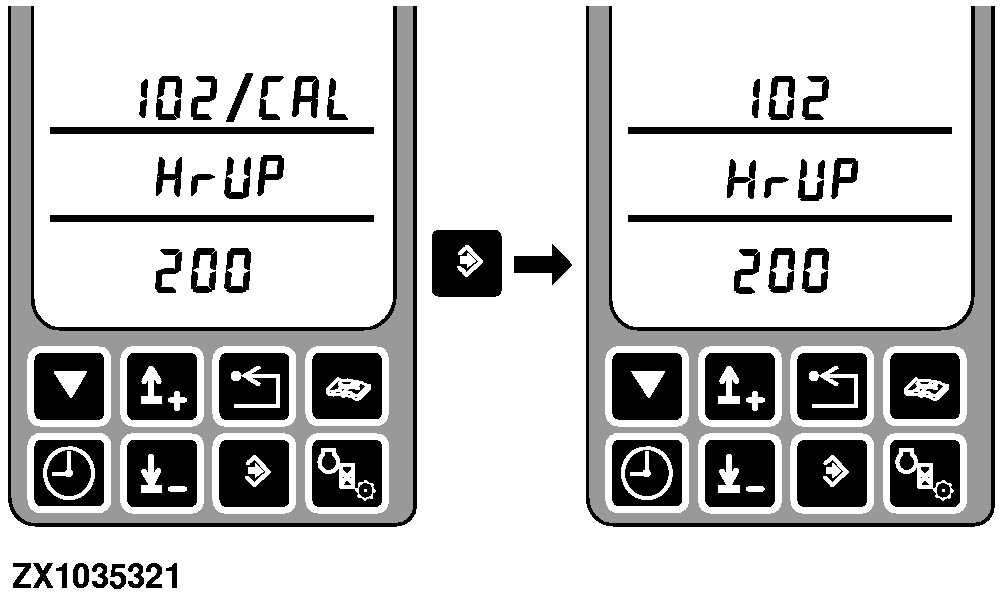

After entering this diagnostic address the display will show the address, HrUP and the value.

Turn the input control knob clockwise to increase the manual header raise rate.

Turn the input control knob counterclockwise to decrease the manual header raise rate.

Press the enter switch to store the current header raise rate.

OUCC020,0001EF4 -19-10AUG04-1/2

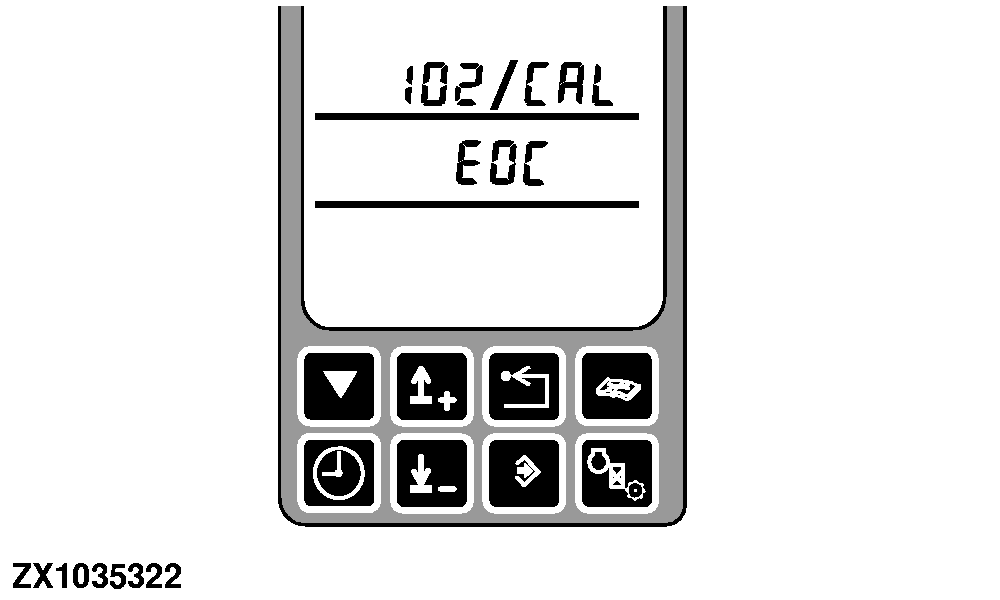

EOC will display the end of calibration mode.

OUCC020,0001EF4 -19-10AUG04-2/2
