Address SPF 103 Calibration - Header Lower Rate

Ignition is switched on.

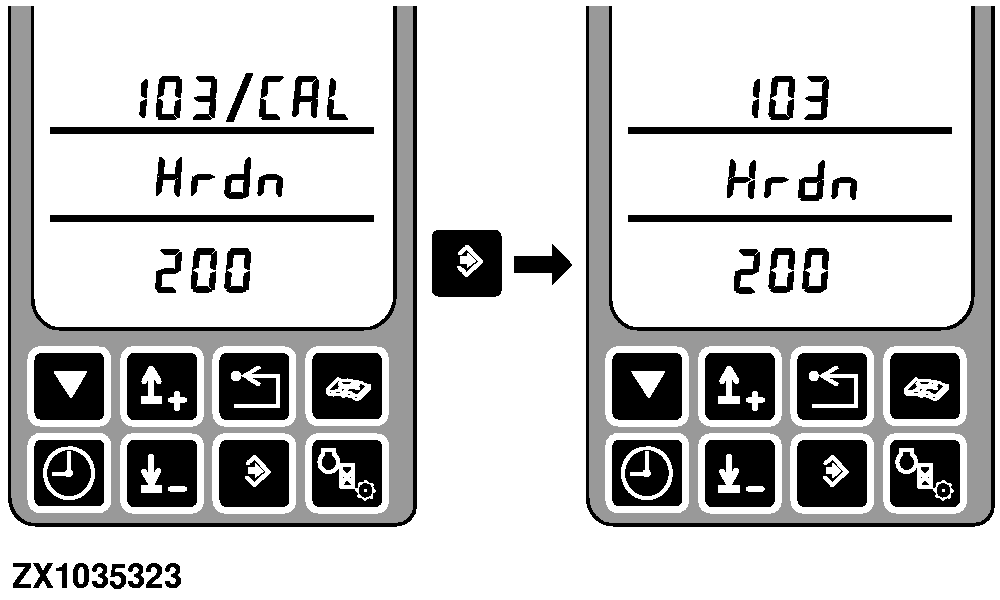

After entering this diagnostic address the display will show the address, Hrdn and the value.

Turn the input control knob clockwise to increase the manual header lower rate.

Turn the input control knob counterclockwise to decrease the manual header lower rate.

Press the enter switch to store the current header lower rate.

OUCC020,0001EF5 -19-10AUG04-1/2

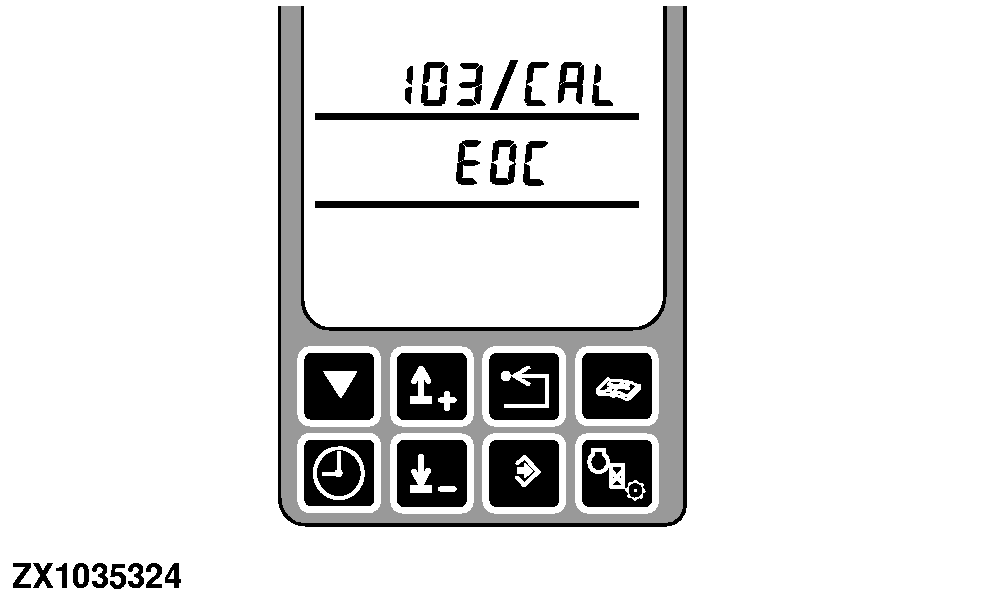

EOC will display the end of calibration mode.

OUCC020,0001EF5 -19-10AUG04-2/2
