OMZ82299: 7200, 7300, 7400, 7500, 7700 and 7800 Self-Propelled Forage Harvesters(507479- ), Block File: OUCC020_0001EF9_19

Used to enable the metal detector simultaneously when the main clutch is engaged.

OUCC020,0001EF9 -19-11AUG04-1/5

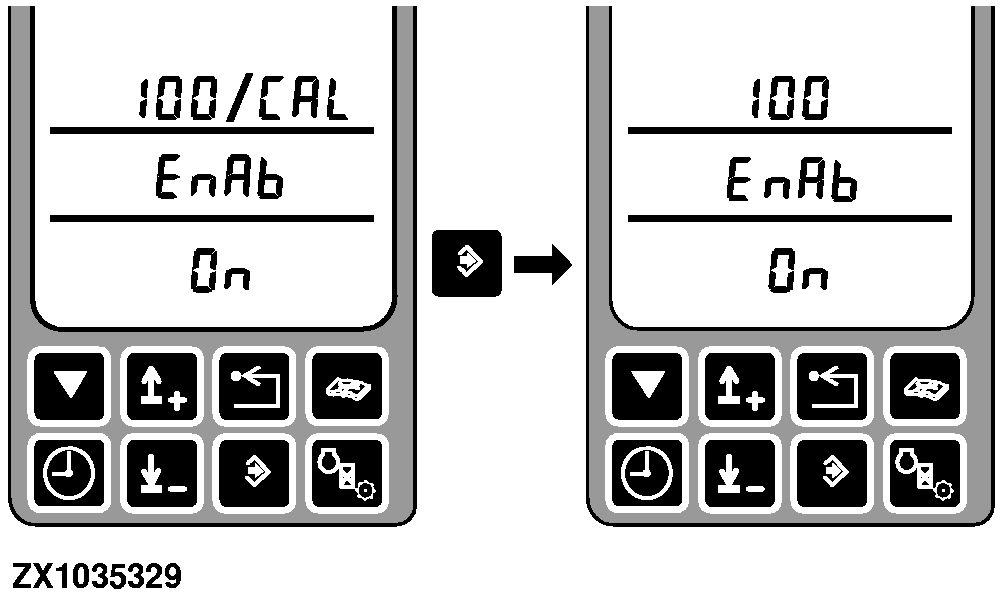

After entering this address, the display will show the address and on.

OUCC020,0001EF9 -19-11AUG04-2/5

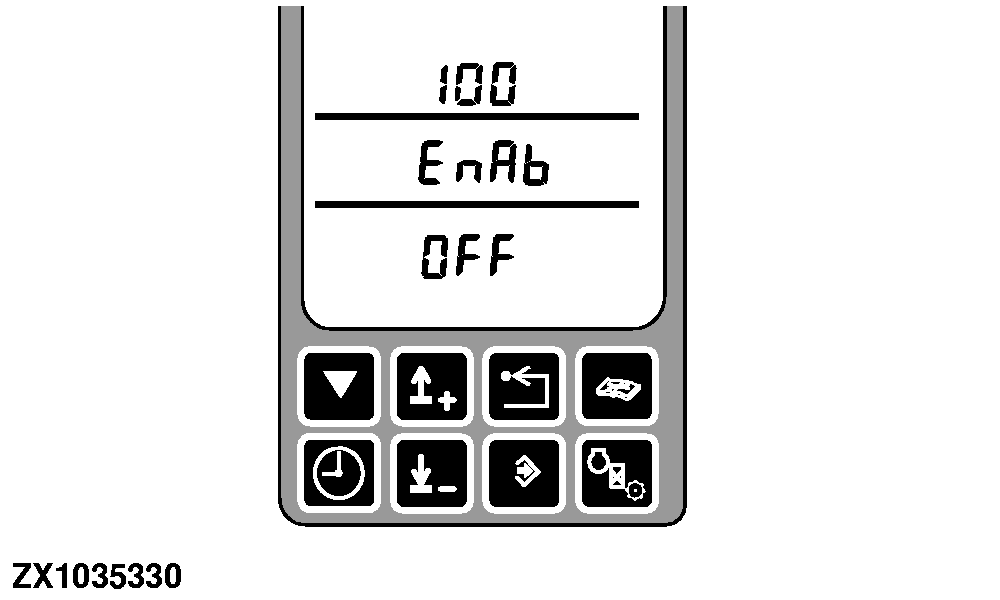

Pressing the calibration switch will toggle the override.

ON - If the override is not active.

OFF - If the override is active.

Pressing the enter switch will set the override based on the operator selection.

OUCC020,0001EF9 -19-11AUG04-3/5

NOTE: The override is disabled when power is removed from the control unit.

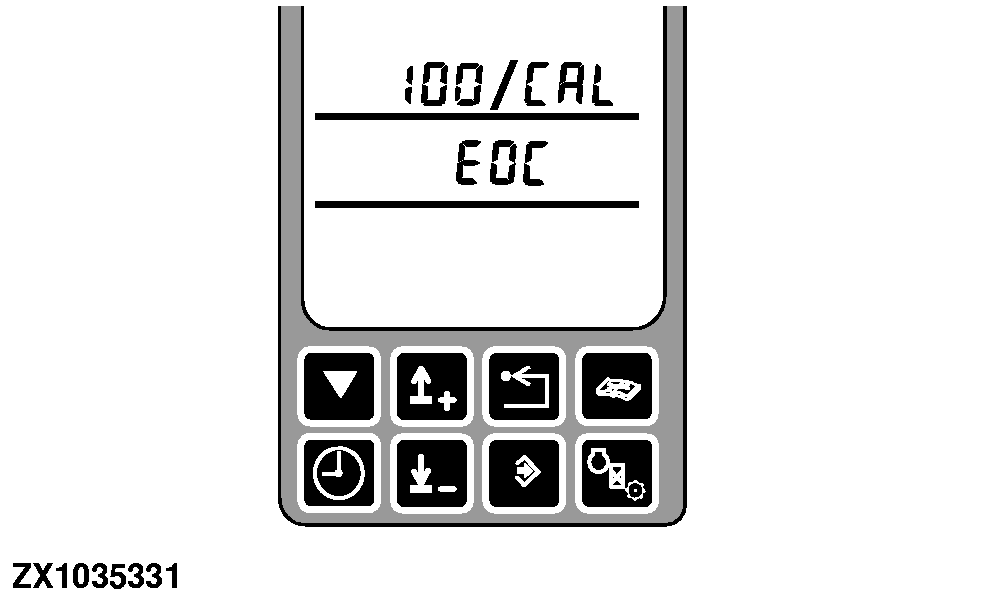

EOC will display the end of calibration mode.

OUCC020,0001EF9 -19-11AUG04-4/5

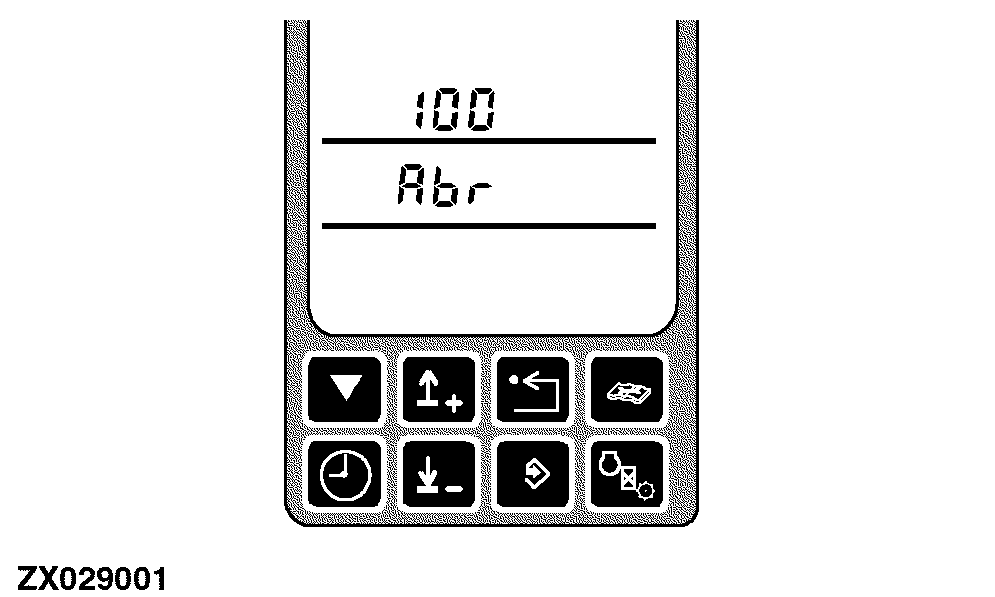

Pressing the back switch two times will abort the calibration.

OUCC020,0001EF9 -19-11AUG04-5/5
