Address SIG 102 Calibration - Failed Stop Pawl Override

If this override is active, the metal detector control unit allows the metal detector to arm even if the feedroll stop pawl has failed.

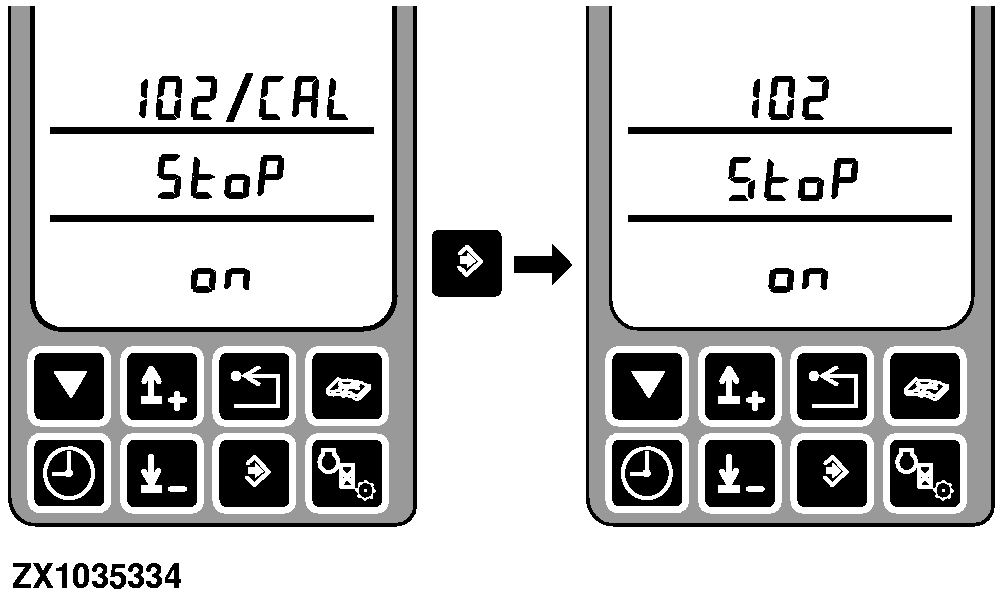

After entering this address, the display will show:

ON - Override is not active.

ZX1035334

OUCC020,0001EFA -19-11AUG04-1/3

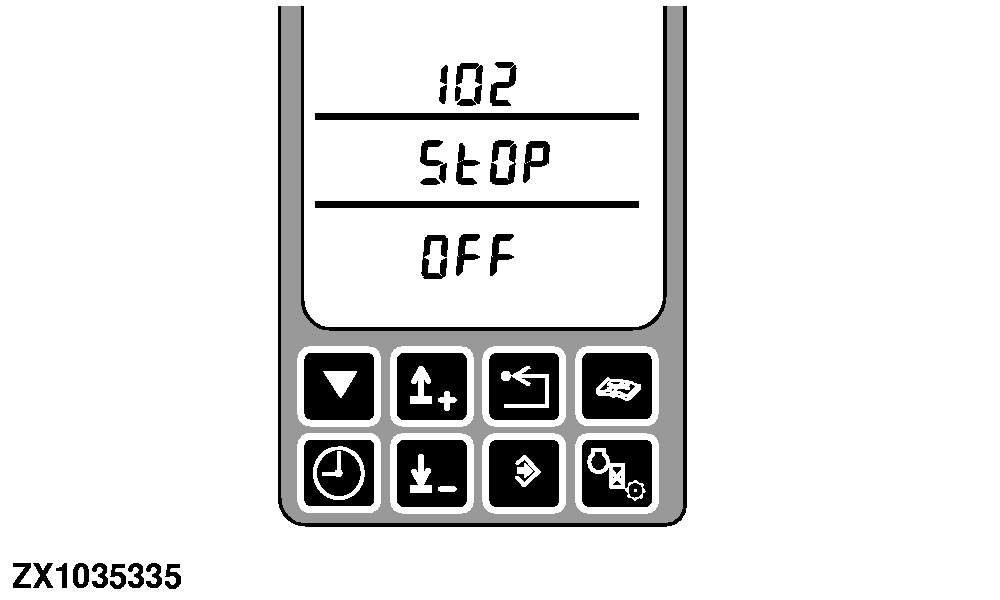

OFF - Override is active.

Press the On-Board Diagnostics (OBD) calibration switch to toggle the override.

ZX1035335

OUCC020,0001EFA -19-11AUG04-2/3

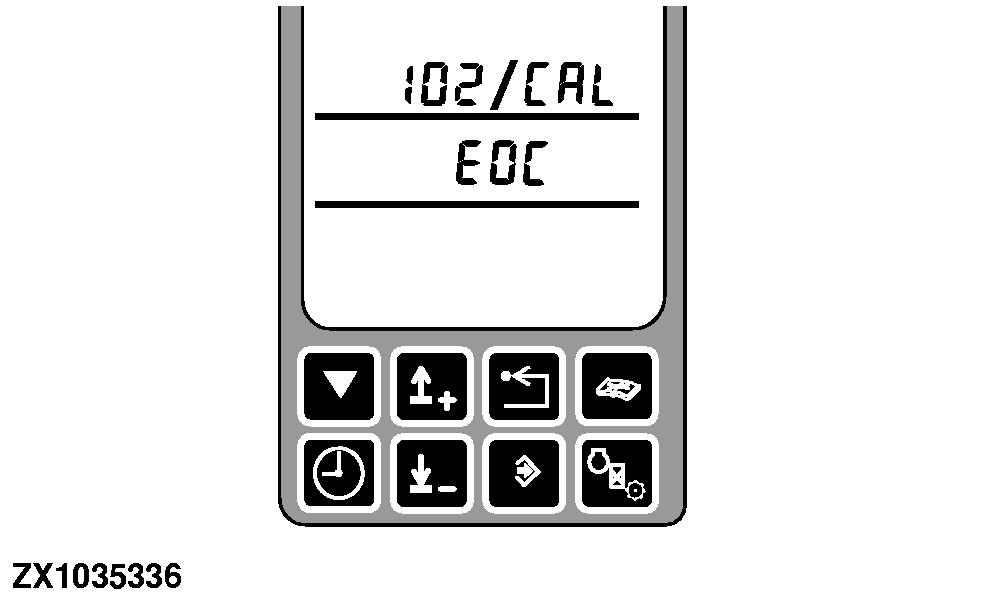

Press the OBD calibration switch to set the override based on the operator selection.

NOTE: This override will be disabled when power is removed from the metal detector control unit.

ZX1035336

OUCC020,0001EFA -19-11AUG04-3/3
