Address SIG 105 Calibration - Automatic Lubrication System On Time

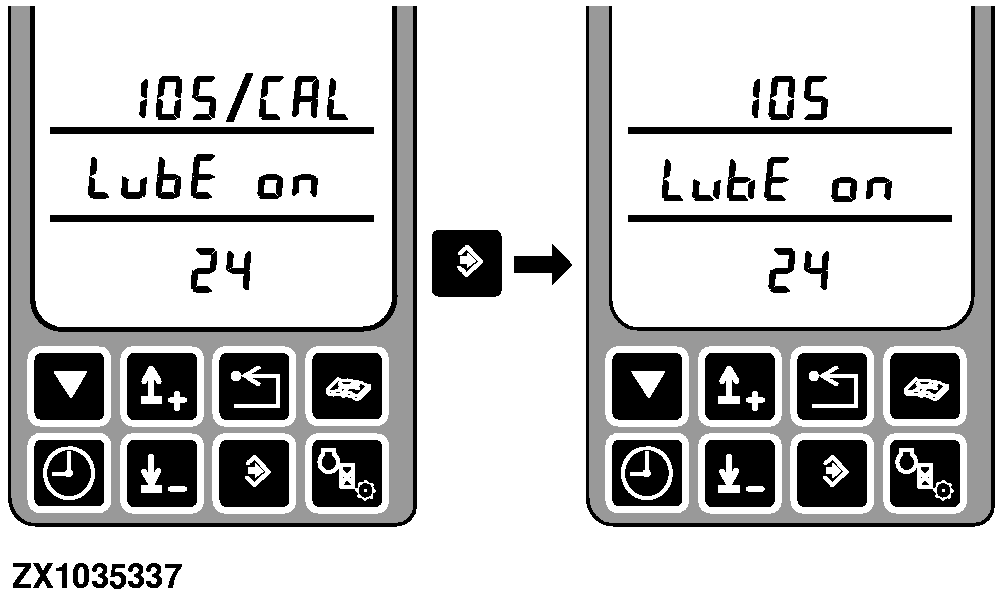

After entering this address the display will show the address and the on time in minutes:

Use the input control knob to change the on time.

Press the enter switch to store the value.

OUCC020,0001EFB -19-11AUG04-1/2

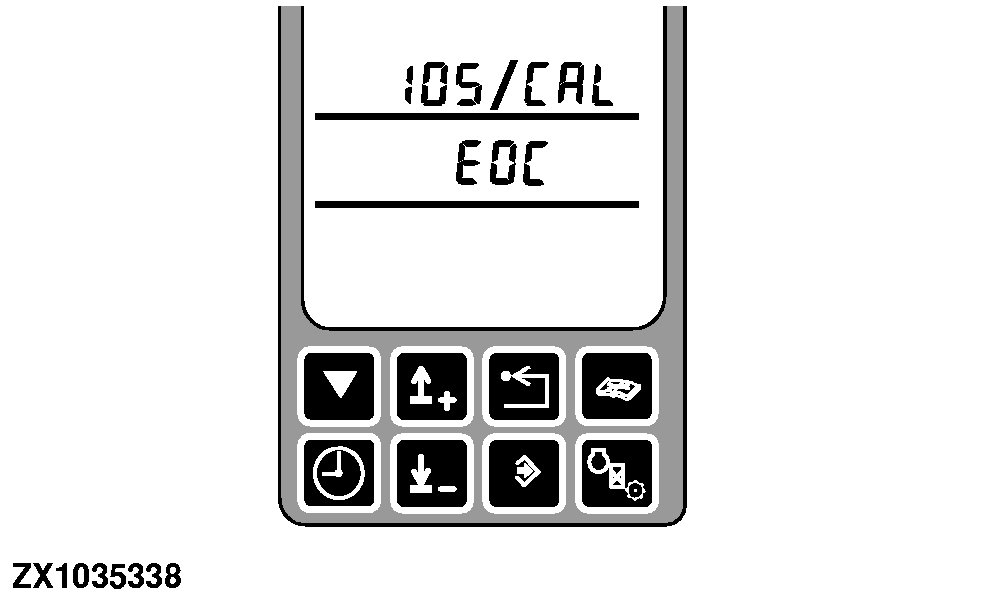

EOC will display the end of calibration mode.

OUCC020,0001EFB -19-11AUG04-2/2
