Address SIG 106 Calibration - Automatic Lubrication System Off Time

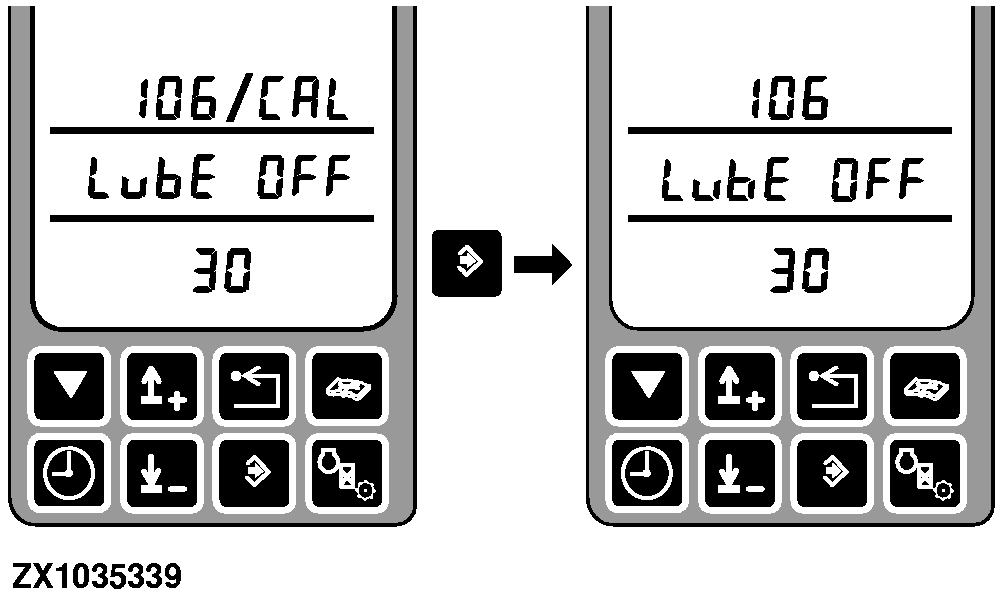

After entering this address the display will show the address and the off time in minutes:

Use the input control knob to change the off time.

Press the enter switch to store the value.

OUCC020,0001EFC -19-12AUG04-1/2

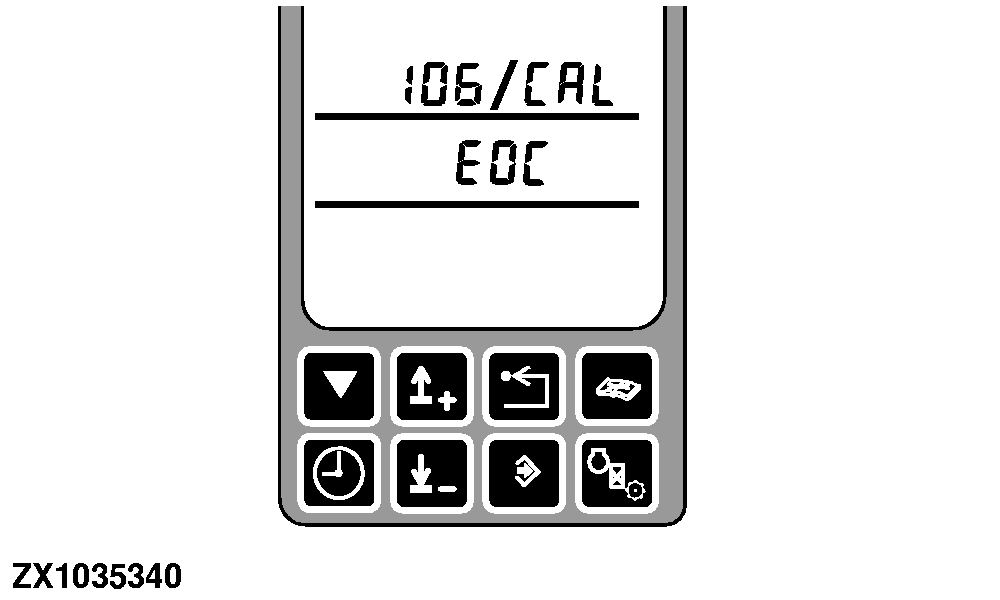

EOC will display the end of calibration mode.

OUCC020,0001EFC -19-12AUG04-2/2
