Address ARC 109 Calibration - SCVII Auto Output Mode Timeout

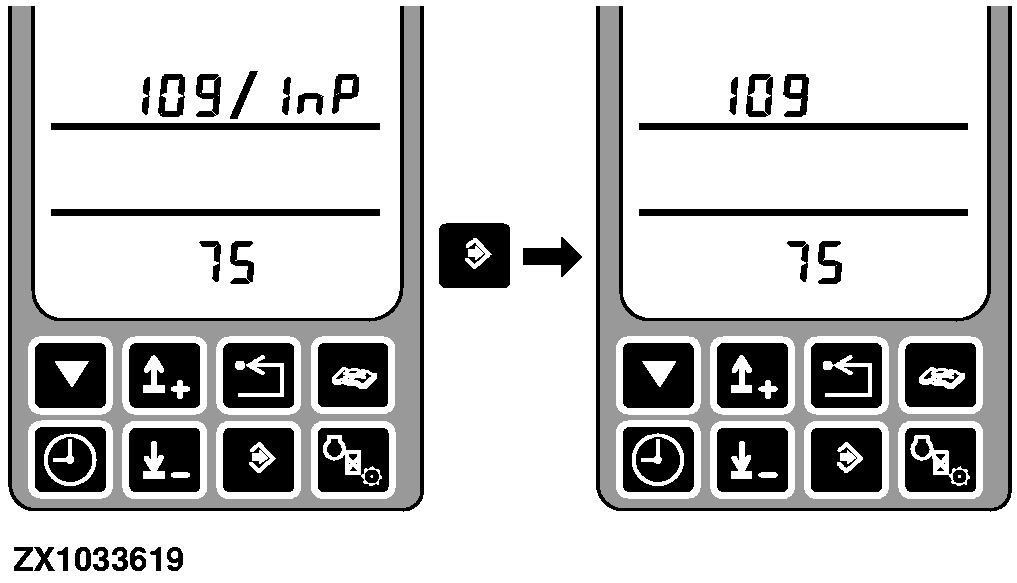

After entering this address the display shows the address and the value.

The value is in units of seconds with a range from 10 to 180 seconds.

Use the calibration switch and the arrow switches to change the value.

Press the enter switch to store the value.

Default value - 75 seconds.

OUCC020,0001EFF -19-13AUG04-1/1
