Warning Lights

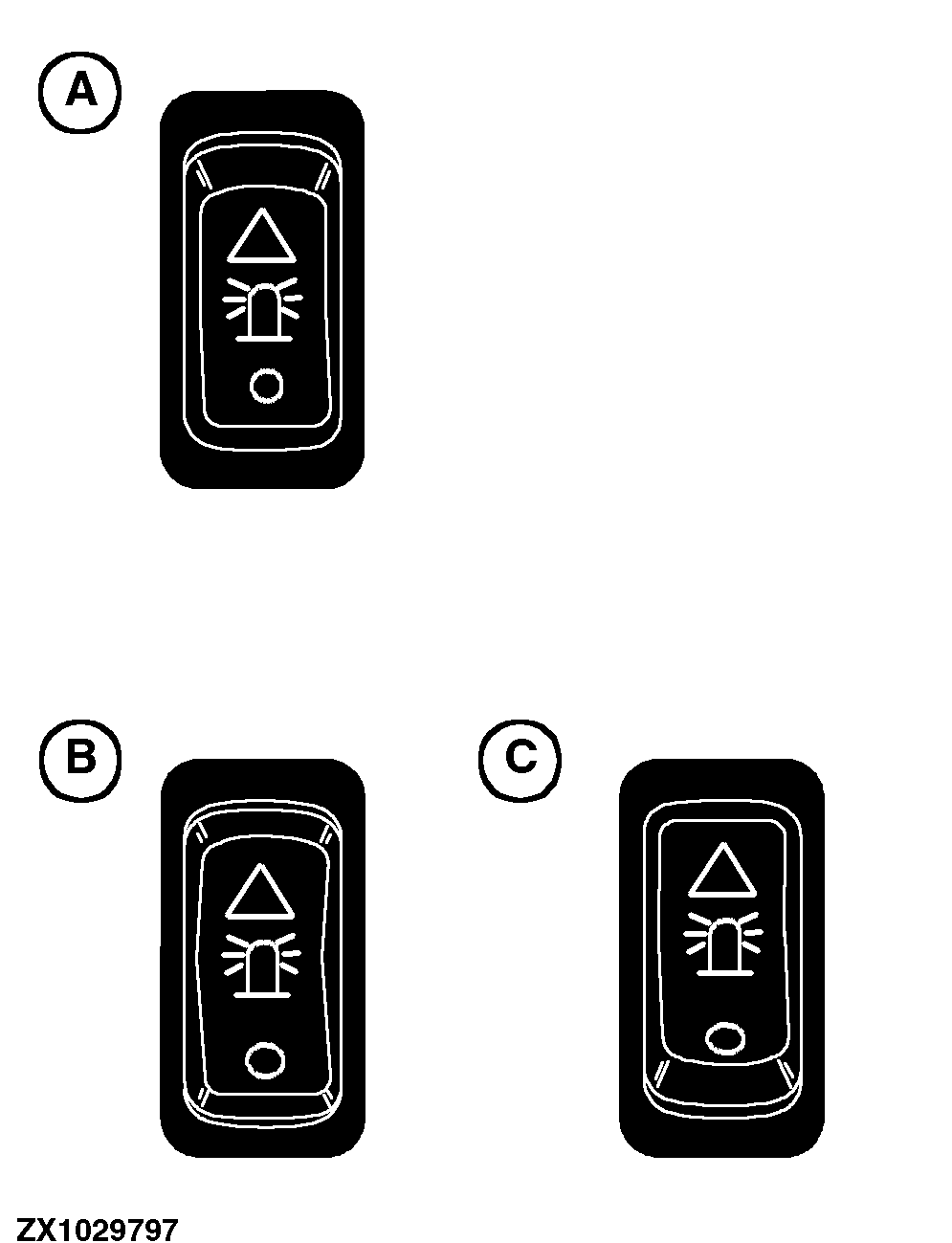

ZX1029797

Warning Light Switch

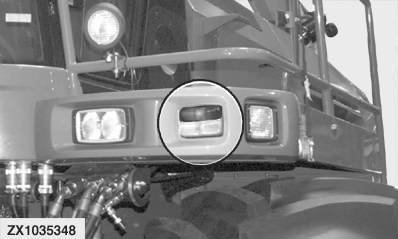

ZX1035348

Warning Lights, Front


A-Hazard Warning Lights, Off
B-Beacon Lights, On
C-Hazard Warning Lights, On

The three position warning light switch controls all warning lights on forage harvester.

When transporting on a road, position lights give warning to other drivers. These lights are located on both sides at the front and rear of the forage harvester.

causym CAUTION: Lights must be turned on when transporting.

Road traffic regulations in some countries require that the hazard warning lights must be switched on whenever the forage harvester is stopped at the side of the road.

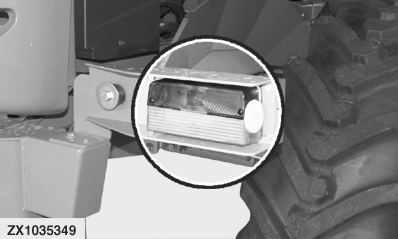

ZX1035349

Warning Lights, Rear

OUCC020,0001F02 -19-02SEP04-1/2

In some countries beacon lights must be switched on when driving on public roads.

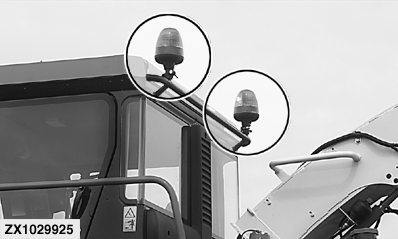

ZX1029925

Beacon Lights

OUCC020,0001F02 -19-02SEP04-2/2
