Transport Information

causym CAUTION: To avoid contact with electrical cables and electrical shock, no portion of the machine should exceed 4 m (13 ft).

causym CAUTION: Check local governmental regulations regarding driving or towing equipment on public roads.

IMPORTANT: If transporting harvester on a low-bed truck, cover exhaust to prevent turbocharger from rotating.

The harvester can be transported on a low-bed truck or by towing.

During towing, place the gearshift lever in neutral and disengage rear wheel drive.

Do not exceed maximum speed of:

  • 27 km/h (17 mph)
  • 20 km/h (12 mph) in Germany

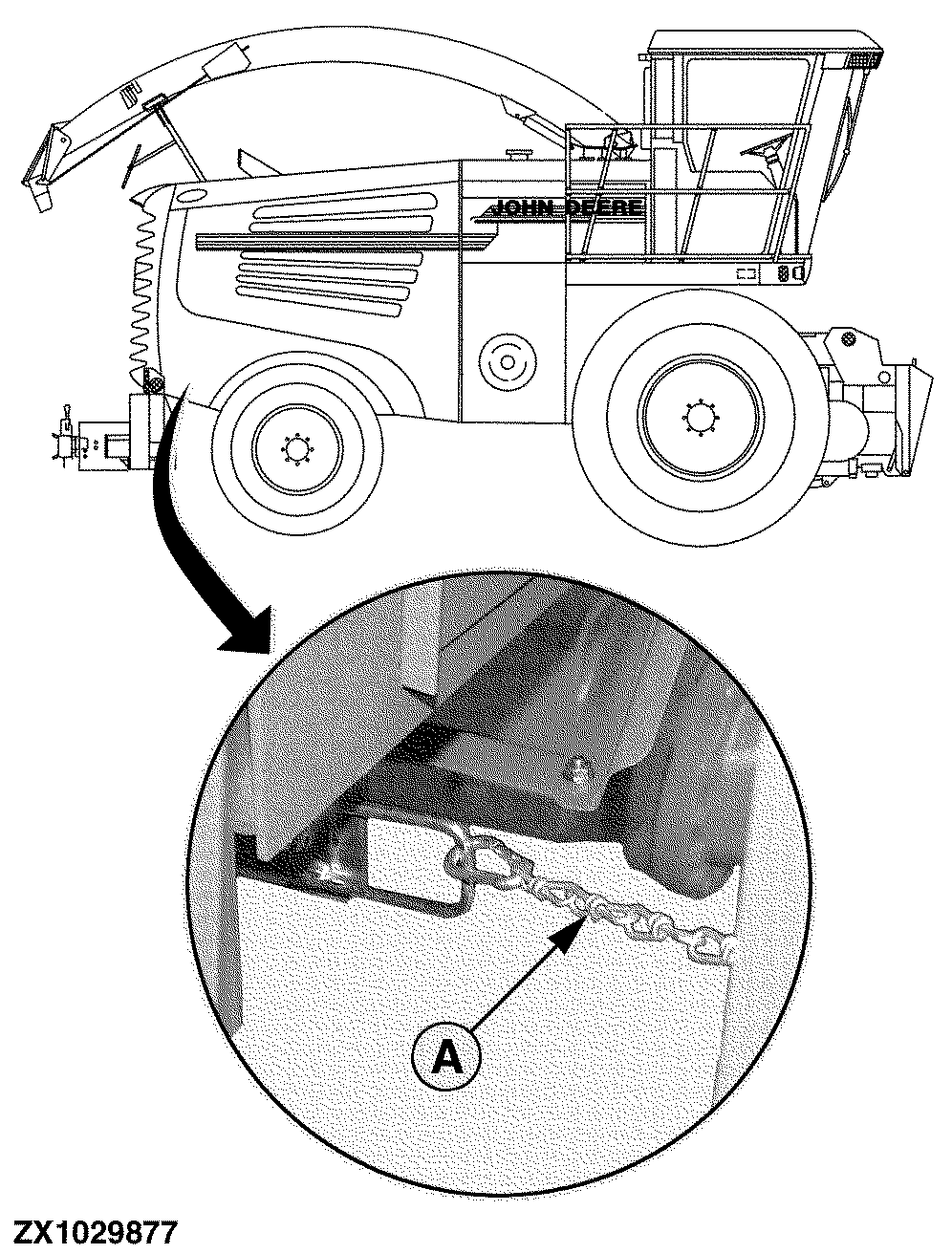

Use safety chain (A) to secure side covers (both sides) during transport.

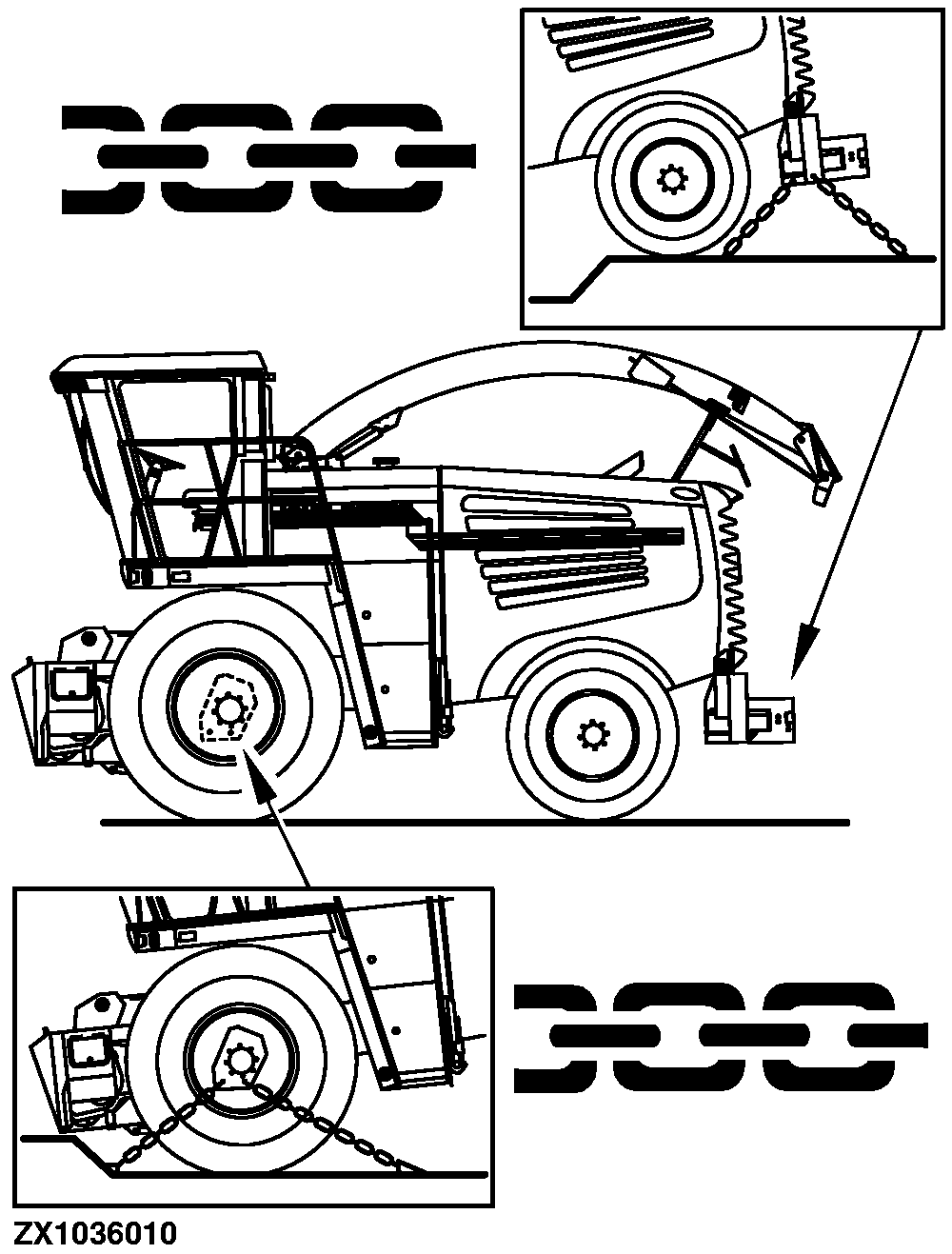

During transport on a low-bed truck, use slotted holes on the frame to secure the machine during transport (see illustration).

Driving on Public Roads

When driving on public roads, an automatic header lowering function is available that allows that the header is lowered to ensure there is enough operating room for the header to float when the vehicle is transported.

To calibrate this function use the following on-board diagnostic address:

  • Address SPF 104 (fifth digit)
ZX1029877
ZX1036010

OUCC020,0001F0A -19-03SEP04-1/1
