Battery Switch

This switch allows the battery to be cut off from the forage harvester's electrical system.

CAUTION: Never switch off the power at the battery main switch while the engine is running! This may damage the forage harvester's electronics, and the voltage peaks that will occur at the alternator may be dangerous.

IMPORTANT: To avoid improper grounding of the wiring harness, place battery switch in open position (II) at the end of harvest season.

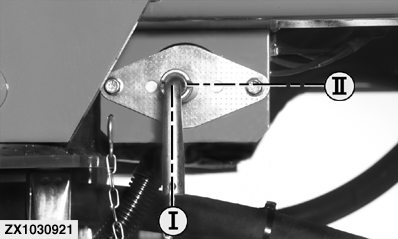

I-Battery Switch Closed
II-Battery Switch Open

OUZXMAG,0001B32 -19-22SEP03-1/1
