Feed Roll Drive (Four-Speed LOC)

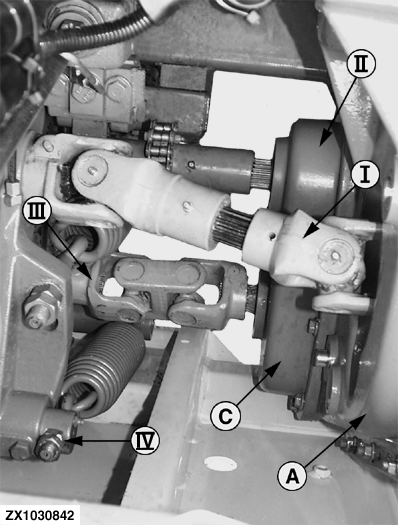

Two of the four feed rolls (I and II) are directly driven by the length-of-cut transmission (A). All rolls are protected by a slip clutch.

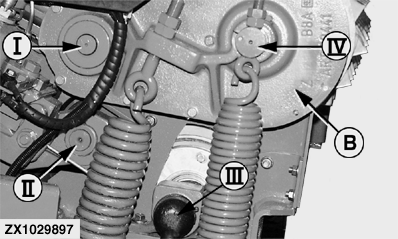

Feed rolls (III) and (IV) are driven by means of oil-bath transmission (C) and grease-bath transmission (B).

A-Length-of-cut transmission
B-Gear transmission
C-Chain transmission at length-of-cut transmission
I-Upper rear feed roll
II-Lower rear feed roll
III-Lower front feed roll
IV-Upper front feed roll
