Adjust the Discharge Chute

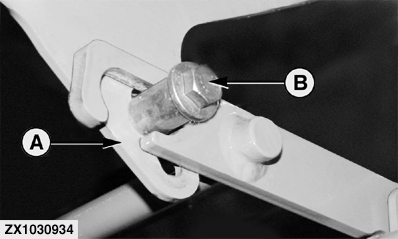

Once the spiral floor has been adjusted (see this Section), set the discharge chute (A) to the highest possible position. To do this, slacken off screws (B), push the discharge chute (A) up by hand, and then retighten the screws.
