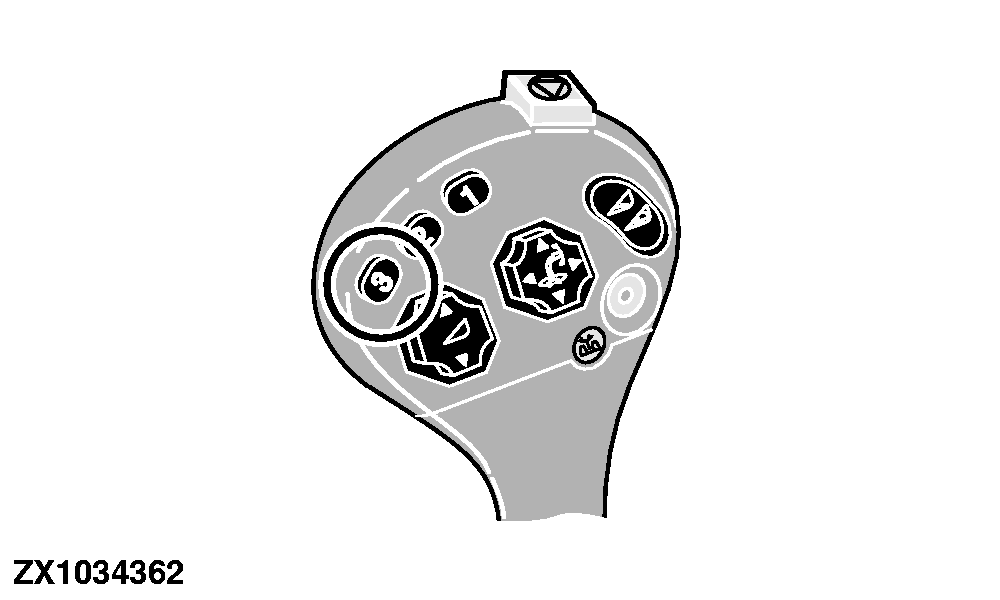

Address ARC 106 Calibration - Button 3 Configuration

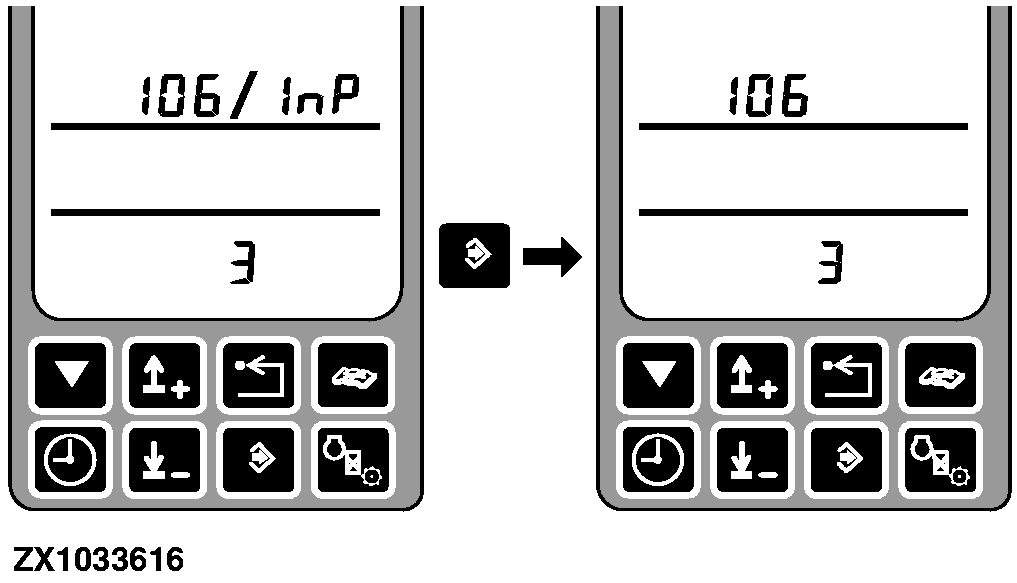

After entering this address the display shows the address and the value.

0 - No function

1 - Return to upper position

2 - Return to lower position

3 - Return to pressure

4 - Row guidance enable

5 - Selective control valve I control (single click drives SCV I + and a double click drives SCV I -)

6 - Sound communication horn

Default value - 3

Use the calibration switch and the arrow switches to change the value.

Press the enter switch to store the value.

OUZXMAG,0001BAB -19-27OCT03-1/1
