Brake Fluid for Brake System

The brake reservoir (A) is located underneath the left-hand guard of the spout ring gear.

IMPORTANT: Use only brake fluid meeting SAE Standard J 1703 (DOT 3 or DOT 4).

    Capacity:

  • Complete system 1.0 L (0.26 U.S. gal)
  • Reservoir 0.5 L (0.13 U.S. gal)

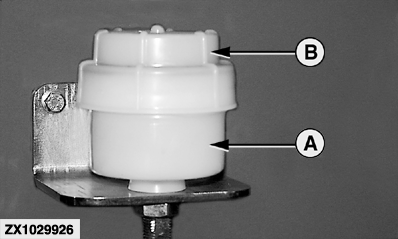

A-Brake fluid reservoir
B-Reservoir cap with float

ZX1029926
