Relays

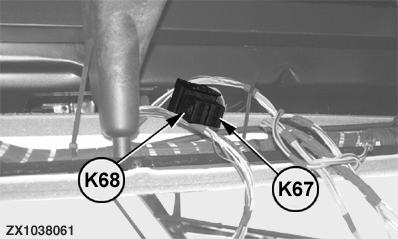

The intermittent front wiper and side wiper relays K67 and K68 are located behind the overhead control panel on the right-hand side of the cab.


K67-Front wiper intermittent relay
K68-Side wiper intermittent relay

ZX1038061

OUZXMAG,0001D1D -19-08NOV05-1/5

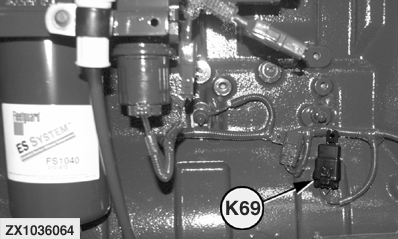

The primer pump relay K69 is located on Cummins Engine (7800).


K69-Primer pump relay

ZX1036064

OUZXMAG,0001D1D -19-08NOV05-2/5

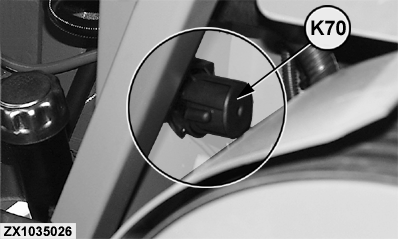

The start safety relay K70 is located on the right hand side near the main clutch.


K70-Start safety relay

ZX1035026

OUZXMAG,0001D1D -19-08NOV05-3/5

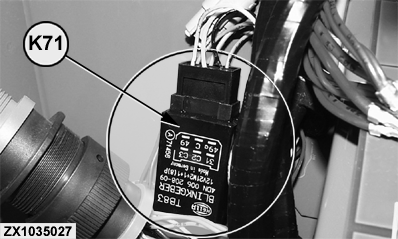

The turn signal relay K71 is located in the load center.


K71-Turn signal relay

ZX1035027

OUZXMAG,0001D1D -19-08NOV05-4/5

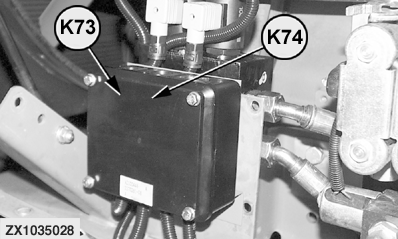

The wagon dump high flow relays K73 and K74 are located in electronic box at the rear of the main hydraulic block.


K73-Wagon dump high flow up
K74-Wagon dump high flow down

ZX1035028
