OMZ82299: 7200, 7300, 7400, 7500, 7700 and 7800 Self-Propelled Forage Harvesters(507479- ), Block File: OUZXMAG_0001D1F_19

Different types of cutterhead knives are available:

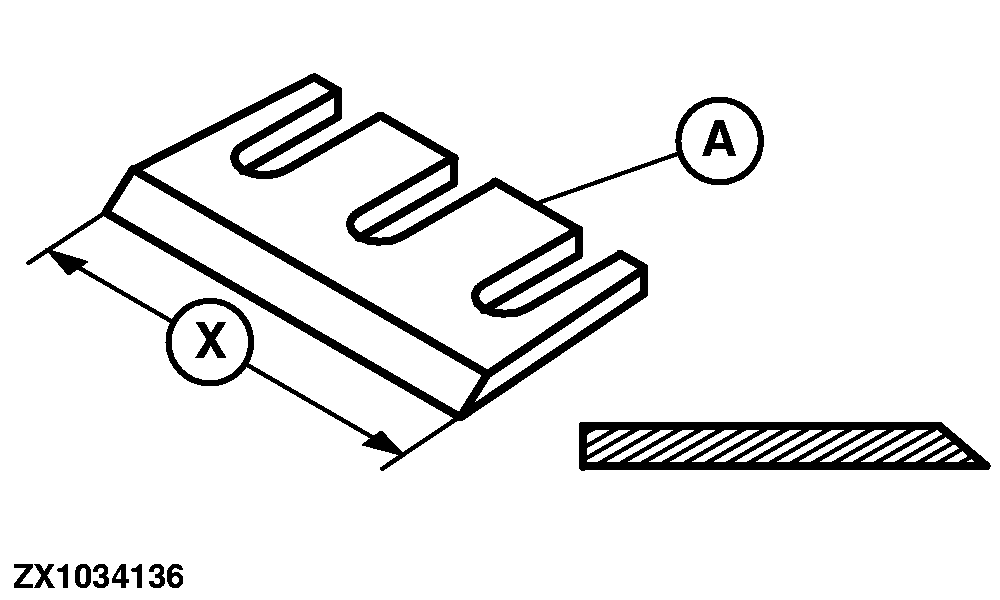

A - Straight knives for grass and whole plant silage

X = 172 mm (6.77 in.)

Straight Knives, 7200 - 7500

OUZXMAG,0001D1F -19-15JUL04-1/5

IMPORTANT: To avoid cutterhead imbalance, never install different types of knives (straight, curved and angled) on the cutterhead.

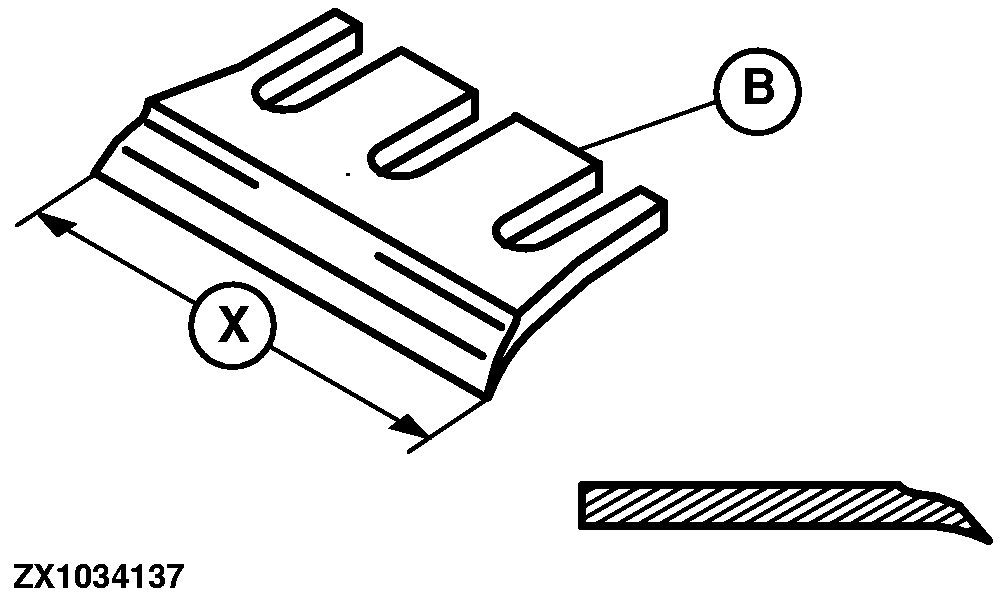

B - Curved knives for corn

X = 182 mm (7.17 in.)

Curved Knives, 7200 - 7500

OUZXMAG,0001D1F -19-15JUL04-2/5

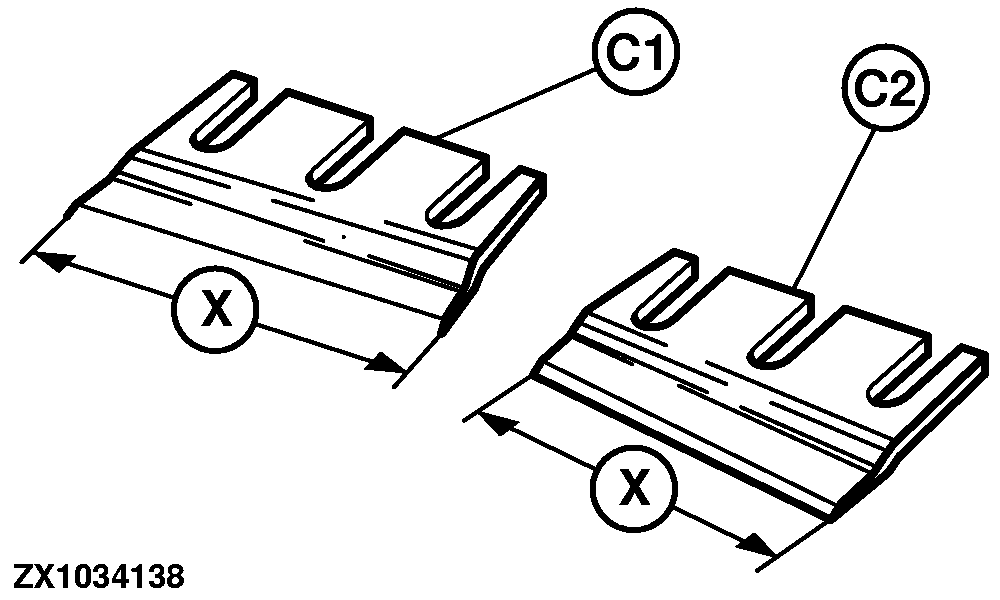

C1 - Angled knives for corn (r.h. side of cutterhead)

C2 - Angled knives for corn (l.h. side of cutterhead)

X = 176 mm (9.93 in.)

Angled Knives, 7200 - 7500

OUZXMAG,0001D1F -19-15JUL04-3/5

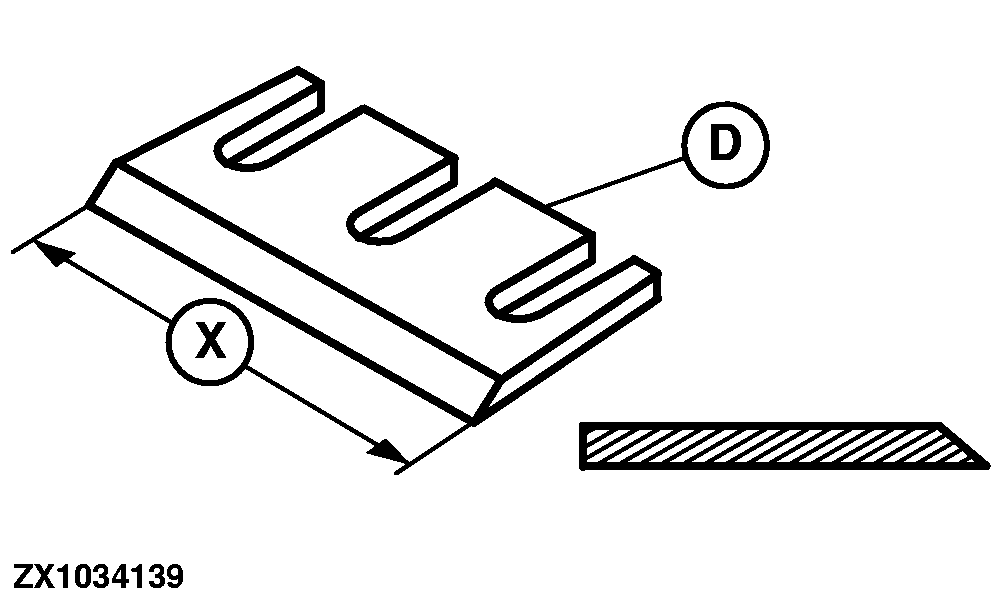

D - Straight knives for grass and whole plant silage

X = 202 mm (7.95 in.)

Straight Knives, 7700 - 7800

OUZXMAG,0001D1F -19-15JUL04-4/5

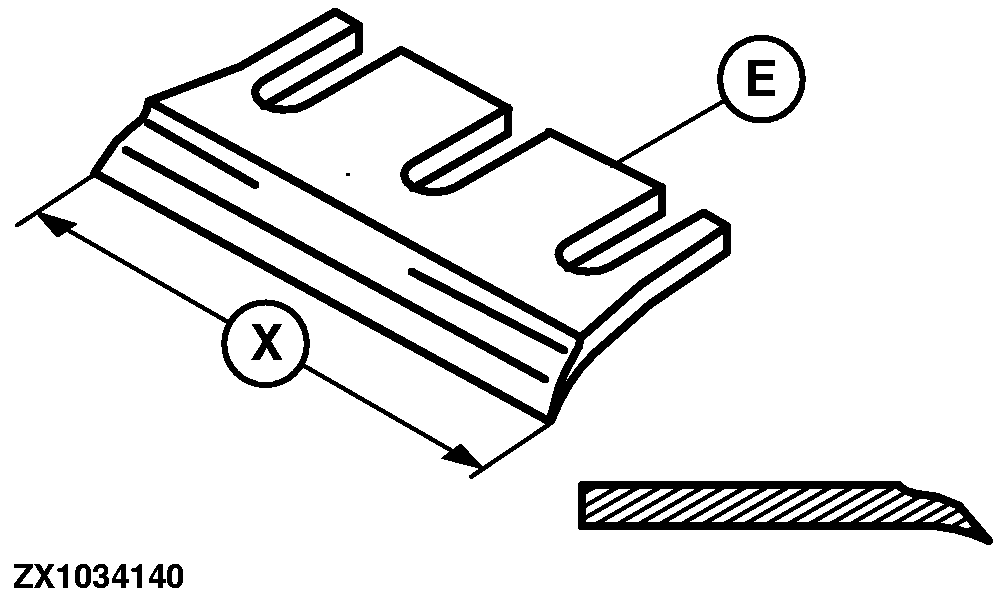

E - Curved knives for corn

X = 210 mm (8.27 in.)

Curved Knives, 7700 - 7800

OUZXMAG,0001D1F -19-15JUL04-5/5
