Trailer Dump Switch (Optional)

Tipping trailer to dump crop is only possible with engine running and road safety switch in field position.

An automatic output mode for trailer dump can be activated by setting the on-board diagnostic address ARC 108 (fifth digit) to 1.

The trailer dump will be engaged if:

• The road safety switch is in field operating mode
• The Operator is on the seat
• The quick stop is not pressed

A double click on the corresponding switch symbol (up or down) turns on the corresponding wagon dump output (up or down) and the output remains on for a timeout that can be set in on-board diagnostic address ARC 109 even when the switch is released.

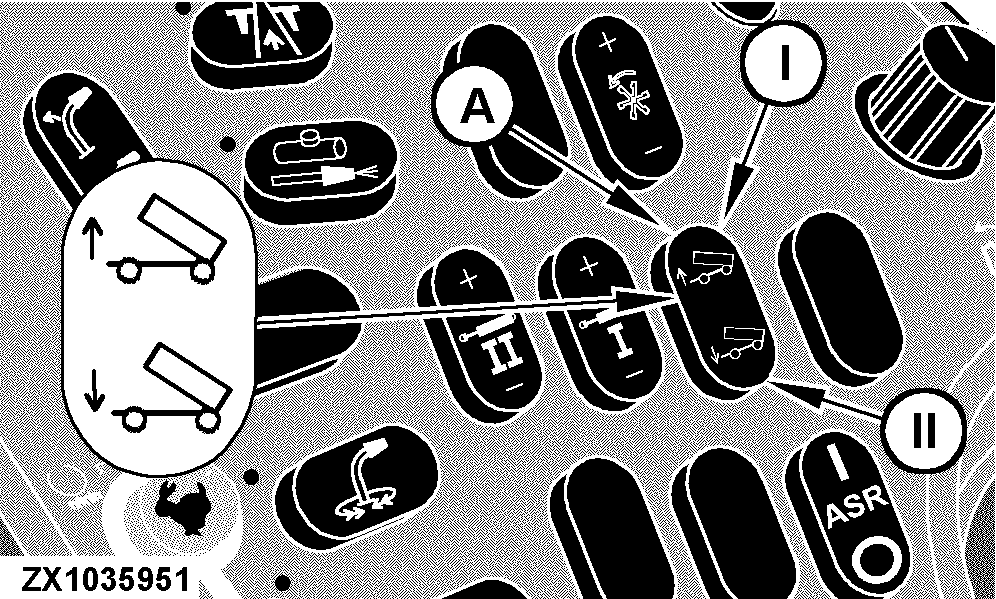

A-Raise / Lower Trailer Switch
I-Raise Trailer Symbol
II-Lower Trailer Symbol
