OMZ82299: 7200, 7300, 7400, 7500, 7700 and 7800 Self-Propelled Forage Harvesters(507479- ), Block File: OUZXMAG_0001D39_19

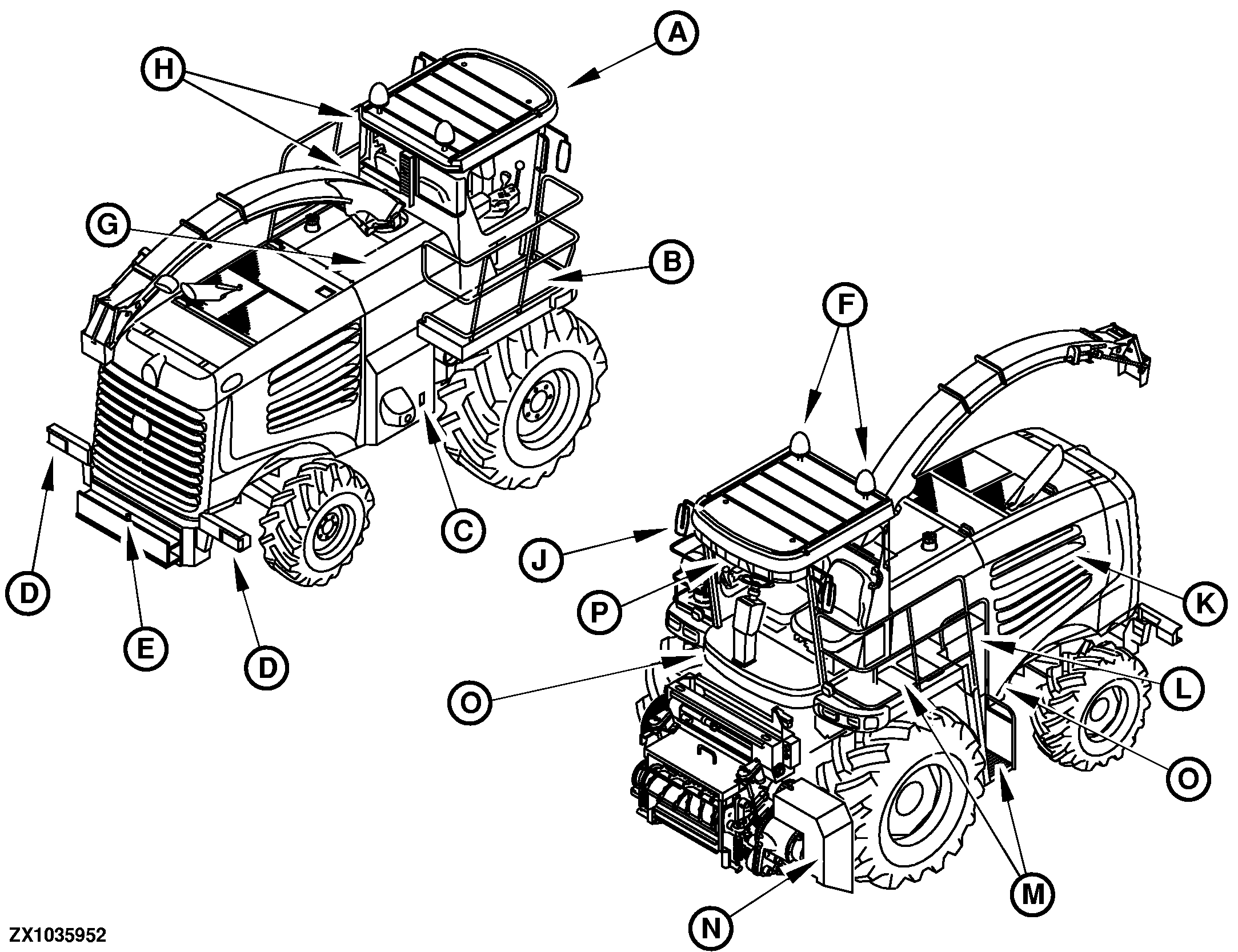

A-Cab Safety Features¹
B-Slip Resistant Service Platform with Handrails
C-Safety Decals
D-Tail and Warning Lights

E-Reverse Travel Alarm
F-Beacon Lights
G-Slip Resistant Skid Mats
H-Hand Hold Railing
J-Rear View Mirrors

K-Shields
L-Decal, Jacking and Tie-down Points
M-Slip Resistant Steps, Service Platform with Handrails

N-Mechanical Safety Stop
O-Cutterhead Rotation Alarm
P-Headlights

In addition to the safety features shown here, other components and systems, safety signs on the machine, and safety messages and instructions in the

Operator's Manual contribute to the safe operation of this forage harvester when combined with the care and concern of a capable operator.

¹Including: Operator's Presence System, Electronic Engine Start Lockout, Seat Belts, Horn, Emergency Exit Window, Parking Brake and Turn Signals.

OUZXMAG,0001D39 -19-24AUG04-1/1
