Number and Arrangement of Cutterhead Knives

IMPORTANT: To avoid damage by cutterhead imbalance, make sure that number and arrangement of knives are correct.

IMPORTANT: Removing half a set of knives in combination with:

  • Third or fourth lenght-of-cut (Four-Speed LOC)

  • Long lenght-of-cut (IVLOC)

  • In corn crops and

  • The use of a kernel processor

Can cause:

  • Increased noise levels

  • Increased risk of plugging of the kernel processor

  • Premature wear of kernel processor components


X-Row arrangement
Y-Number of knives per row
Z-Total number of knives

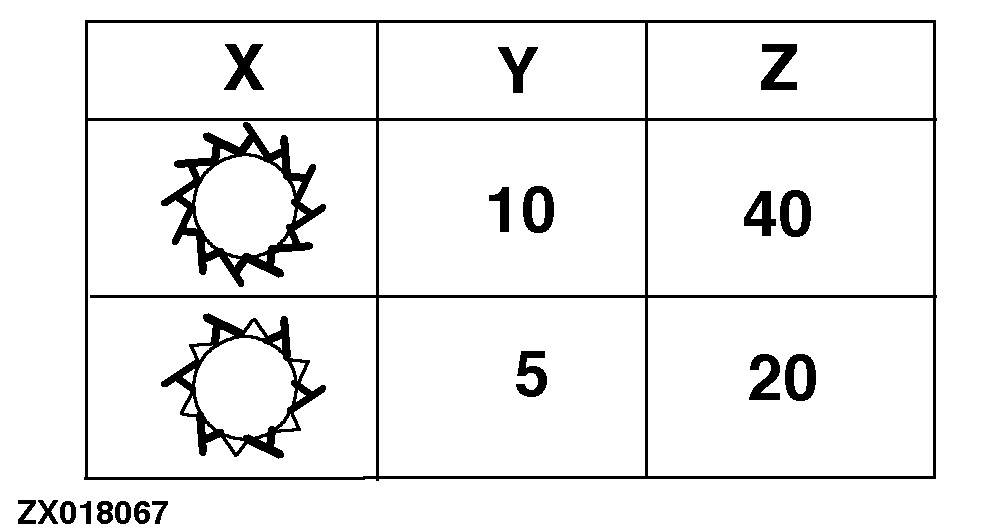

ZX018067

40-knife cutterhead

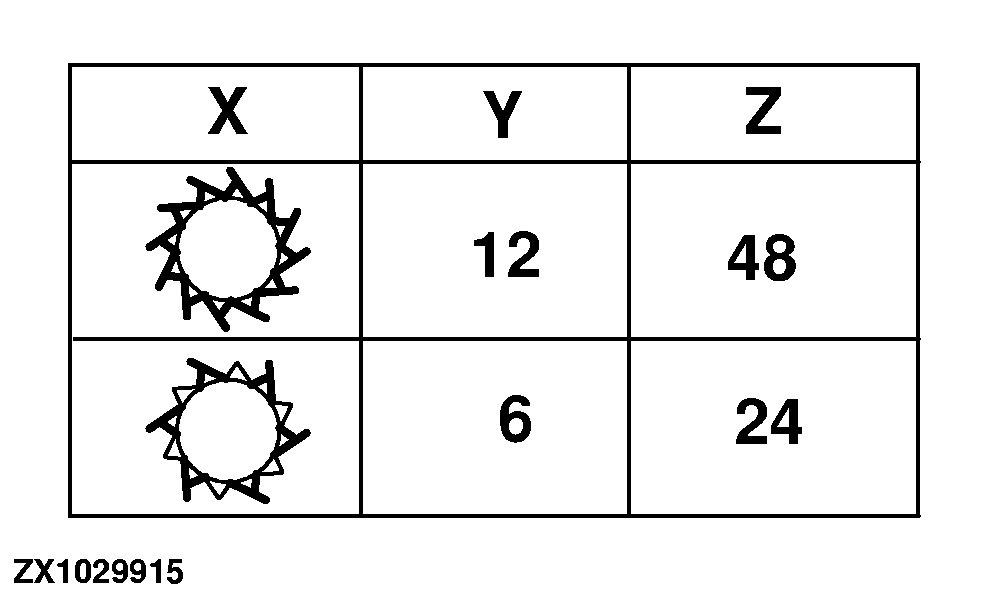

ZX1029915

48-knife cutterhead

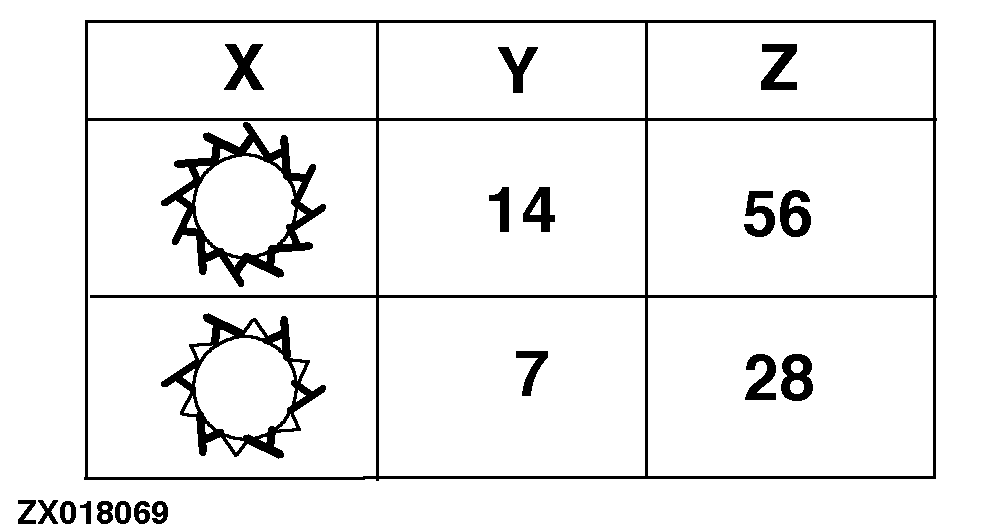

ZX018069

56-knife cutterhead

OUZXMAG,0001D4B -19-27AUG04-1/1
