Stop Screws for Roll Clearance Adjustment

After loosening lock nuts (A), screw the stop screws (B) all the way out.

Set roll clearance to 1 mm (0.04 in.) at right and left (see above).

At both ends, tighten the stop screws (B) until 0.5 mm (0.019 in.) clearance between bottom of slider housing and stop screw (B) is achieved.

Retighten lock nuts (A).

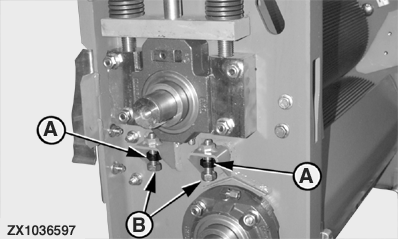

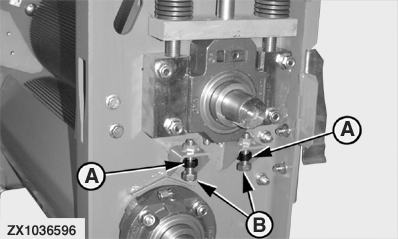

A-Lock nuts
B-Stop screws

OUZXMAG,0001D56 -19-12OCT05-1/1
