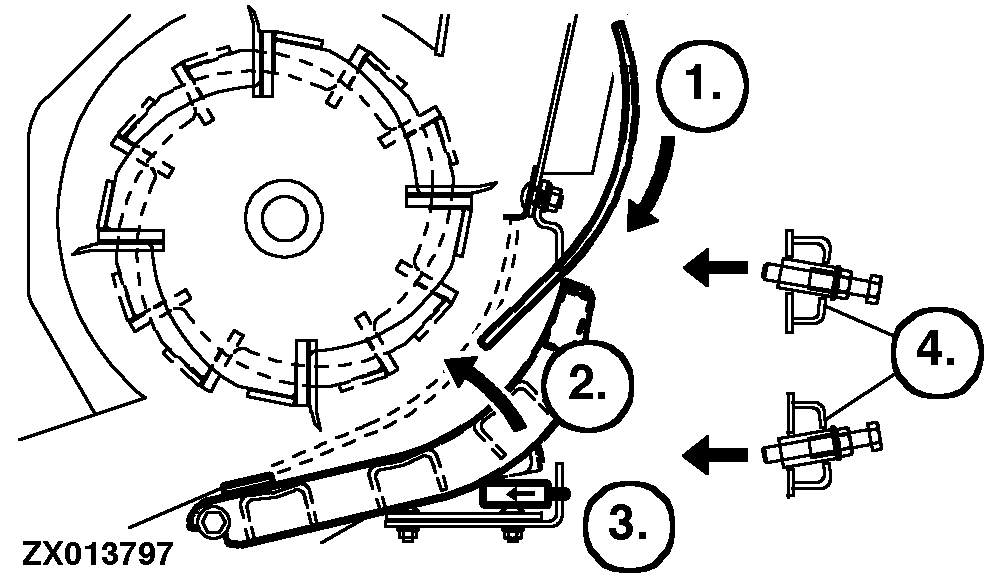

Installing Wear Plate

For installation, reverse removal procedure and install components in the following sequence:

• Wear plate
• Frame
• Clamping key

Crossmembers

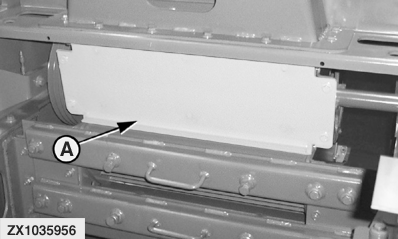

On 7700 and 7800 harvesters, install the vertical plate (A).

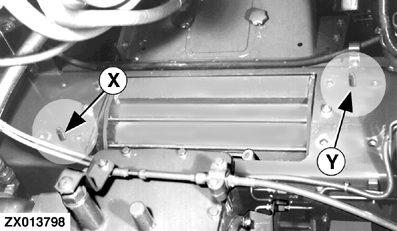

When installing crossmembers, make sure that bores in crossmembers are aligned with pins (X - bottom l.h.) and (Y - top r.h.).

A-Vertical plate

OUZXMAG,0001D5A -19-27AUG04-1/1
