OMZ82299: 7200, 7300, 7400, 7500, 7700 and 7800 Self-Propelled Forage Harvesters(507479- ), Block File: OUZXMAG_0001D5F_19

Move the multi-function lever to the previously determined position to obtain ground speed of 6-8 km/h (4-5 mph).

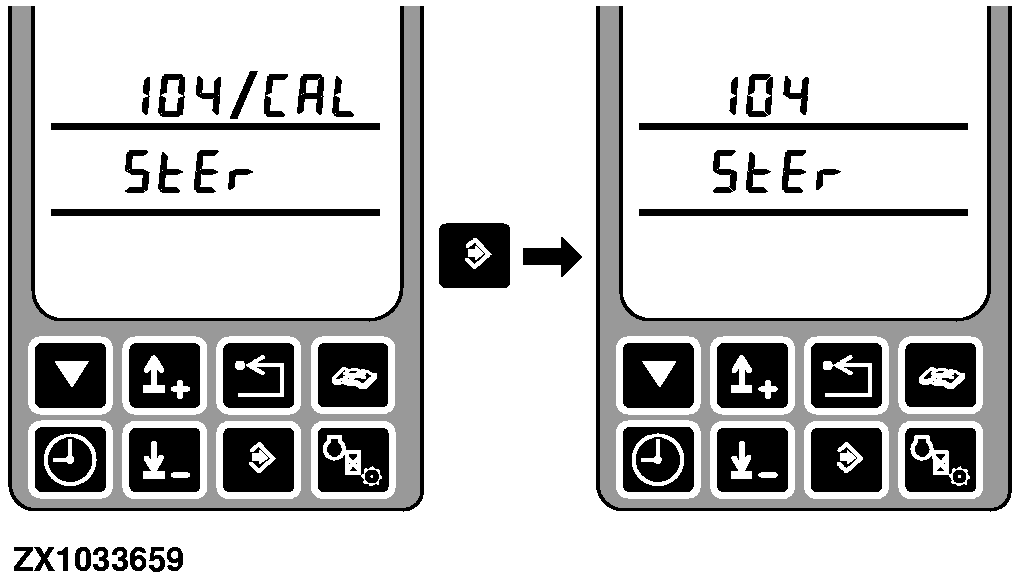

After entering this address the display shows the address and StEr.

While driving in a straight line, press the enter switch to begin calibration.

OUZXMAG,0001D5F -19-27AUG04-1/4

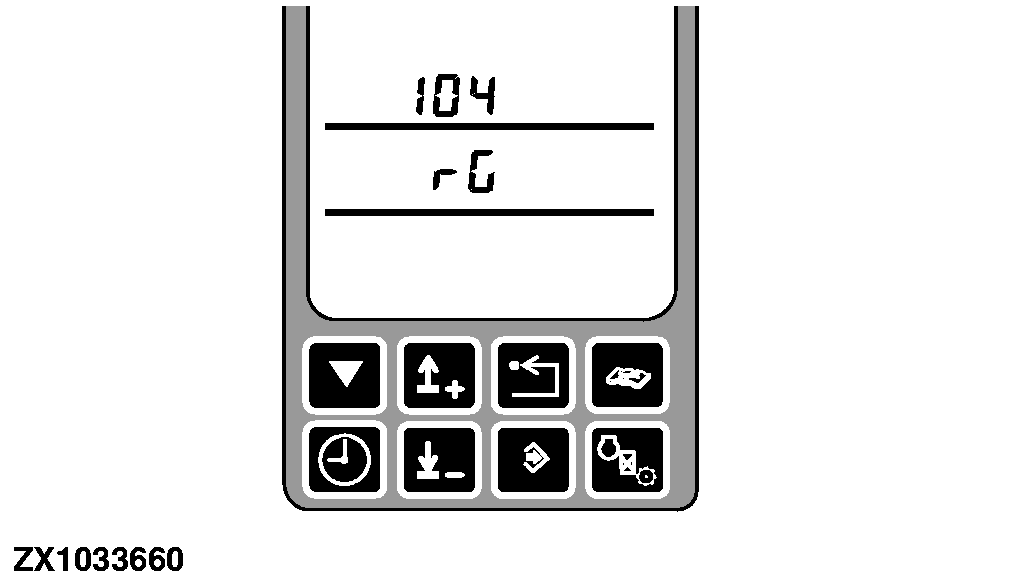

The middle display line shows rG if the control panel has not enabled the row guidance control unit.

OUZXMAG,0001D5F -19-27AUG04-2/4

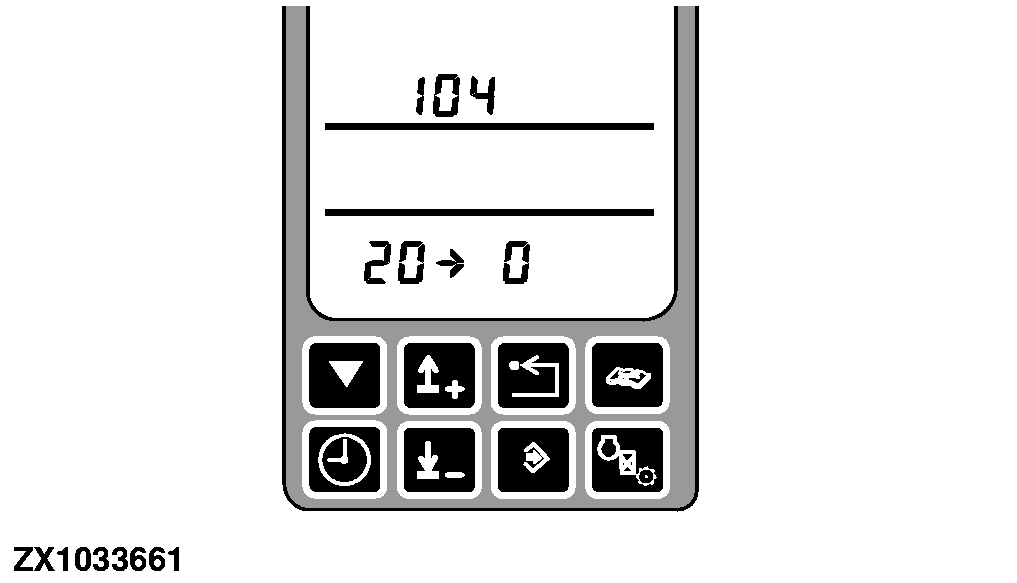

Enable row guidance control unit, the display counts down from 20 seconds to zero.

Drive the self-propelled forage harvester in a straight line until count down reaches zero.

Once completed, the analog value that corresponds to the steering center position is displayed.

Press the enter switch to accept the calibration value.

OUZXMAG,0001D5F -19-27AUG04-3/4

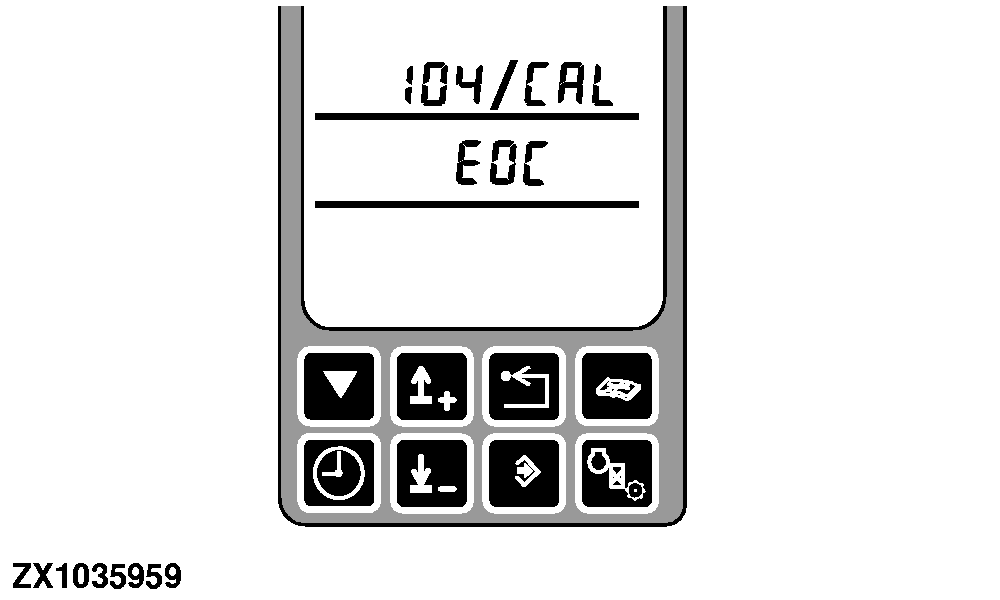

EOC is displayed after successful calibration. CONTINUE DRIVING THE MACHINE then immediately press the up switch to go to Address RGC 105.

OUZXMAG,0001D5F -19-27AUG04-4/4
