Windshield Wiper And Washer Switch

Ignition must be turned on for windshield wiper operation. Default wiper control mode is "intermittent" at startup. Press switch (A) to toggle between "intermittent" and "permanent" wiper control modes.

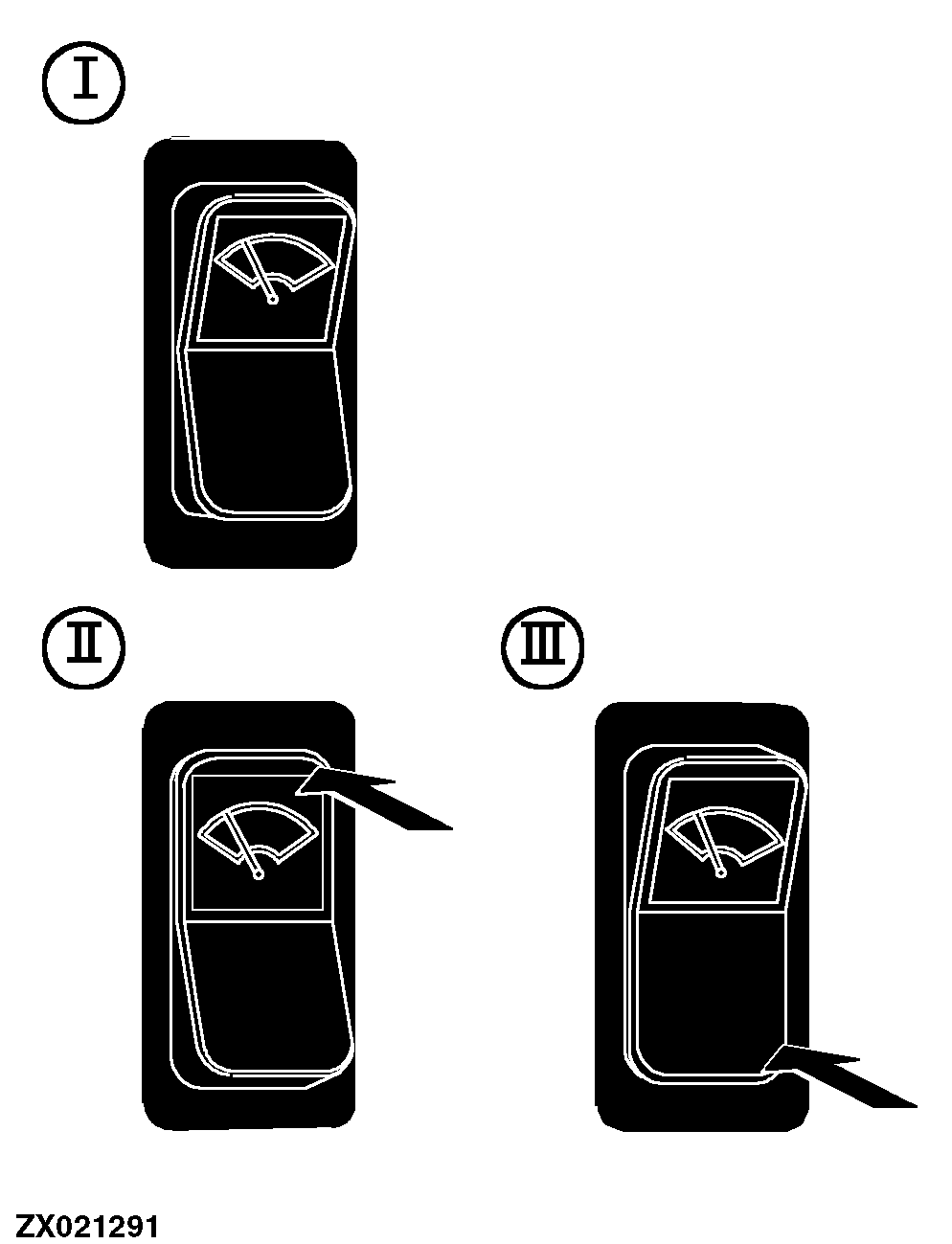

I Windshield wiper and washer off II Windshield wiper operates continuously / intermittently III Windshield washer on

NOTE: The intermittent wiper interval and wiper sweep time are independently configurable, see On-Board Diagnostic addresses:

  • RCP 105-Default interval setting: 15 seconds (range: 2 to 180 seconds)

  • RCP 106-Default sweep time setting: 2.0 seconds (range: 0.1 to 30 seconds)


A-Intermittent Wiper Switch

ZX021291
ZX1035973

OUZXMAG,0001D7A -19-03SEP04-1/1
