Side Window Wiper / Washer Switch (Option)

Ignition must be turned on to operate side window wiper/washer system. Default wiper control mode is "intermittent" at startup. Press switch (A) to toggle between "intermittent" and "permanent" wiper control modes.

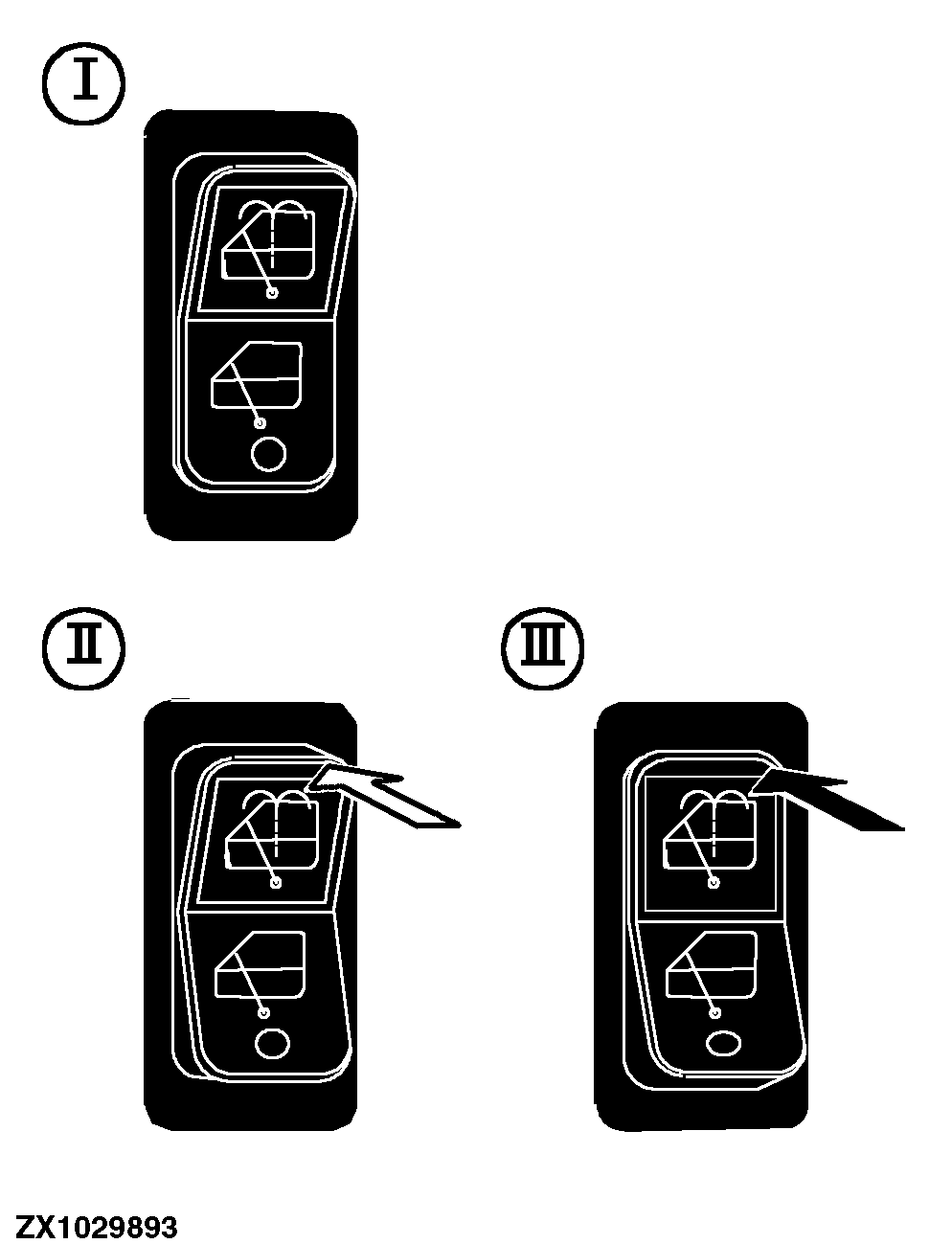

I Wipers and washer off II Wipers operate continuously / intermittently III Washer on

NOTE: The intermittent wiper interval and wiper sweep time are independently configurable, see On-Board Diagnostic addresses:

  • RCP 105-Default interval setting: 15 seconds (range: 2 to 180 seconds)

  • RCP 106-Default sweep time setting: 2.0 seconds (range: 0.1 to 30 seconds)

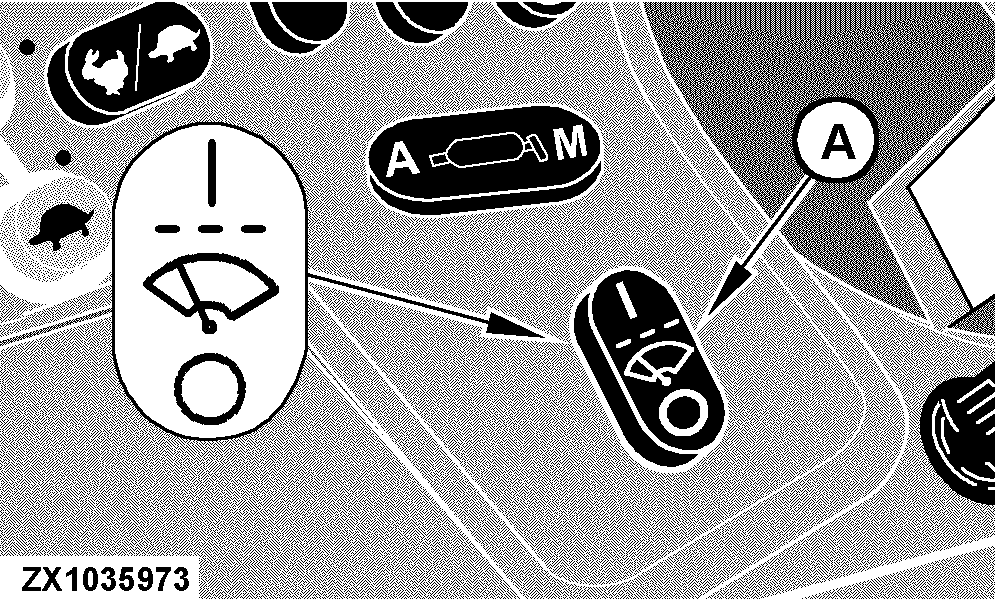

A-Intermittent Wiper Switch

ZX1029893
ZX1035973

OUZXMAG,0001D7B -19-03SEP04-1/1
