Setting Transport Bracket

1. After the initial delivery or when unloading Forage Harvester from a truck, raise and rotate the spout out of the transport hook.

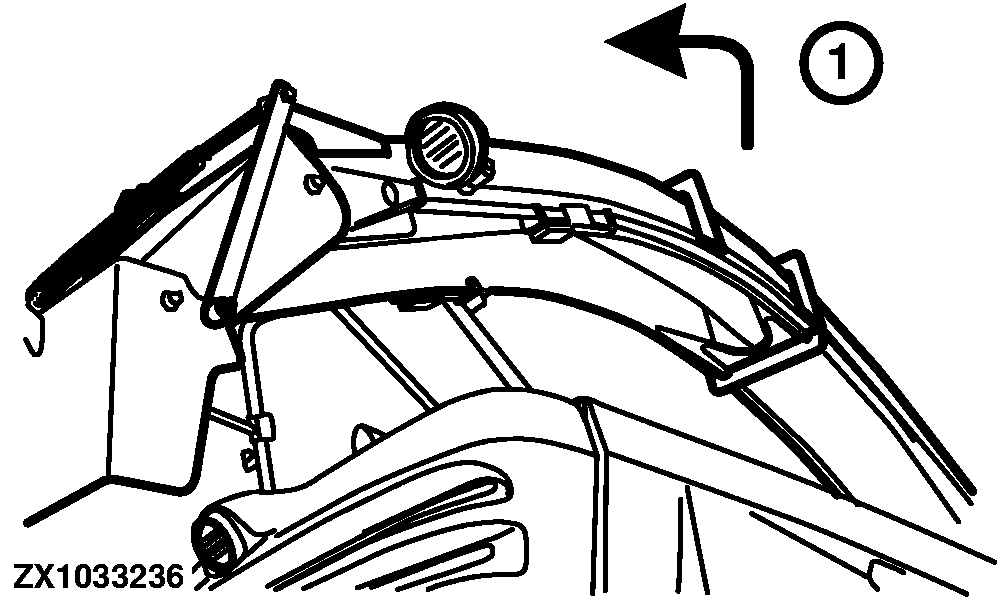

ZX1033236

OUZXMAG,0001D7C -19-06SEP04-1/4

2. Lower the spout on its storage support.

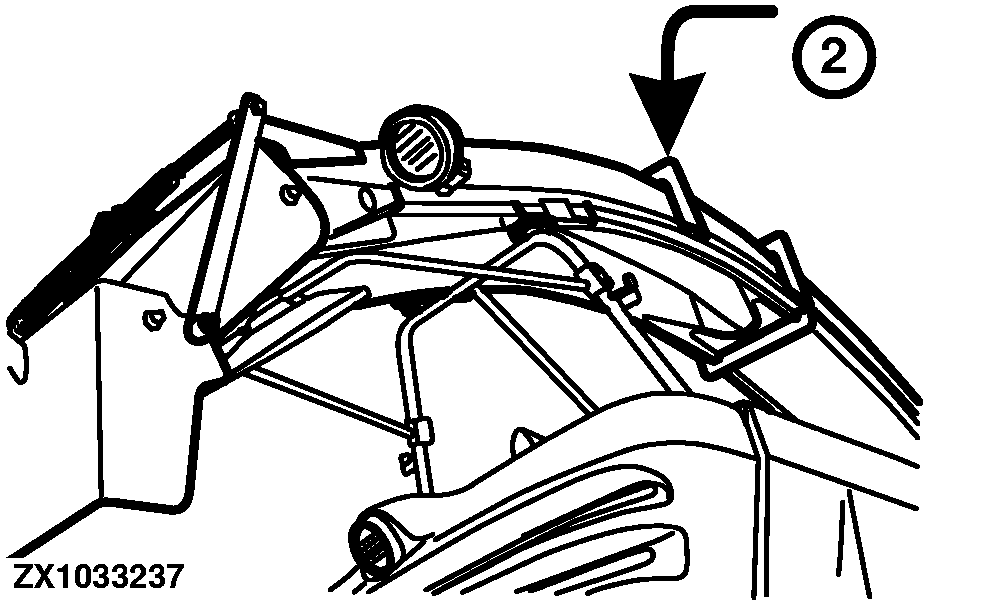

ZX1033237

OUZXMAG,0001D7C -19-06SEP04-2/4

3. Move up the strap (A) to set bracket (B) into storage position (I) as shown.

IMPORTANT: Storage position (I) MUST be used when operating Forage Harvester. NEVER operate the machine with bracket (B) in transport position (II).


4. When transporting the machine on a truck, pull the bracket (B) out of spout cylinder rod until strap (A) falls down. The bracket (B) is then set to its transport position (II).


A-Strap
B-Bracket
I-Bracket in storage position
II-Bracket in transport position

ZX1035974

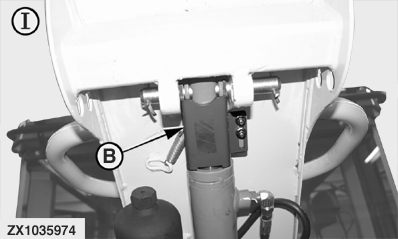

Unlock Transport Bracket

ZX1035975

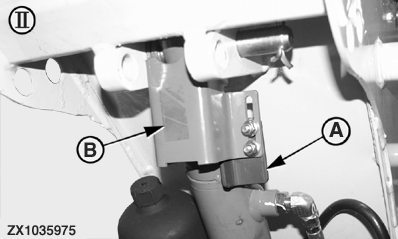

Lock Transport Bracket

OUZXMAG,0001D7C -19-06SEP04-3/4

5. Slightly raise and rotate spout to the right so that it can be lowered into the transport hook.

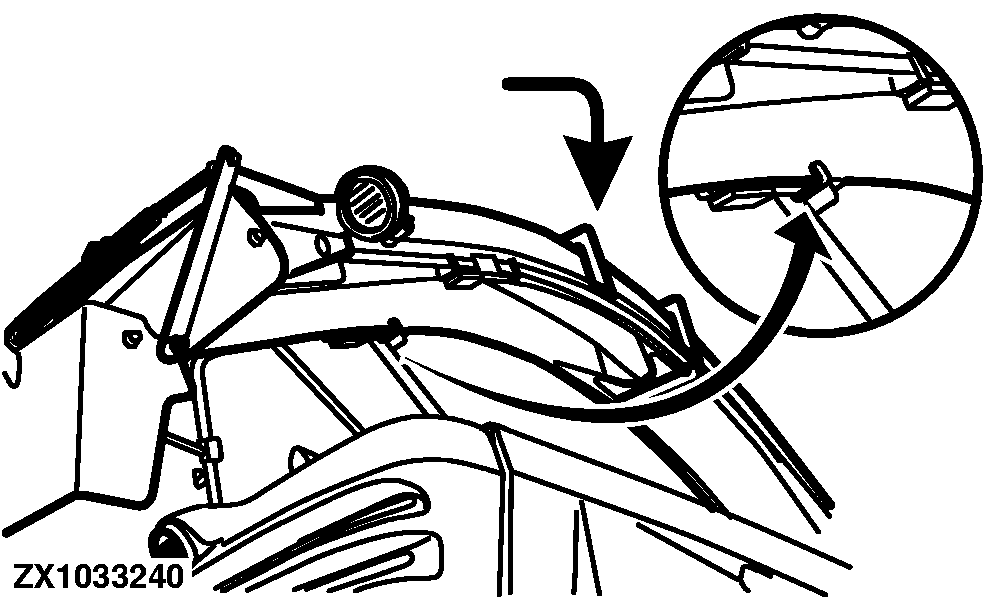

ZX1033240

OUZXMAG,0001D7C -19-06SEP04-4/4
