Should the machine be transported on a trailer, prepare the machine for loading as follows:
-
Cover the exhaust pipe to prevent turbocharger rotation.
-
Tie down the R.H. window handle.
-
Cover the cab air intake.
-
Fold back the mirrors.
-
Lower the radio antenna.
-
Turn the Slow Moving Vehicle (SMV) symbol (if equipped) around.
-
Lower the spout and set transport bracket to prepare for truck transport position as follows:
-

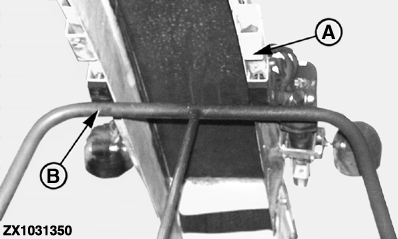

Lower spout (A) on its storage support (B).
-

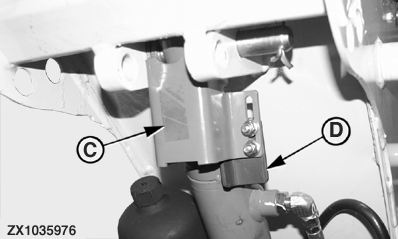

Pull the bracket (C) out of spout cylinder rod until strap (D) falls down.
-
Slightly raise and rotate spout to the right so that it can be lowered into the transport hook.
|
|
