Manual Stationary Knife Adjustment

causym CAUTION: Lower harvesting unit to the ground when adjusting stationary knife.

To avoid bodily injury always stand on the side of the machine when adjusting stationary knife.

IMPORTANT: Stationary knife must be readjusted every time cutterhead knives have been sharpened. Adjust stationary knife twice a day, even if cutterhead knives are not being sharpened. This will extend knife life and require less power.

Preparations (Four-Speed LOC Only):

  • Move the two front shift rods (A) at length-of-cut transmission into neutral position.
  • Four-speed LOC: If a kernel processor or power chute is installed, drive belt must be locked (put out of operation), see Locking Device - Kernel Processor / Power Chute Main Drive (Four-Speed LOC Only) in Sections Kernel Processor or Power Chute.
ZX1038587


A-Shifting Rods

OUZXMAG,0001D80 -19-04NOV05-1/3

Additional preparation, if automatic adjustment is not used:

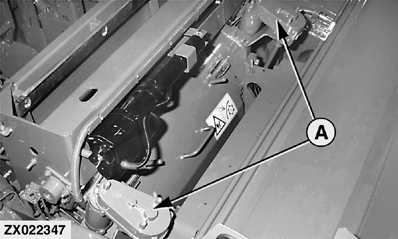

Remove both motors (A) with brackets from adjusting rods.


A-Motors

ZX022347

OUZXMAG,0001D80 -19-04NOV05-2/3

Start engine.

Engage cutterhead by means of switch (A). Cutterhead is rotating backwards.

NOTE: If switch (A) is already in "On" position when starting engine, the cutterhead is not rotating backward. Switch to "Off" position and then to "On" position again. The cutterhead will start turning (in reverse direction) after two or three seconds.


A-Cutterhead Reverse Switch

ZX1033266

OUZXMAG,0001D80 -19-04NOV05-3/3
