Outside Mirror R.H. Side (Mandatory for Germany-Optional for Other Countries)

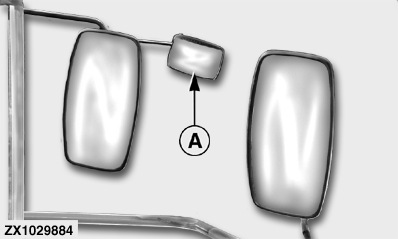

To fulfill the german legal requirements an additional mirror (A) must be mounted on the r.h. side.

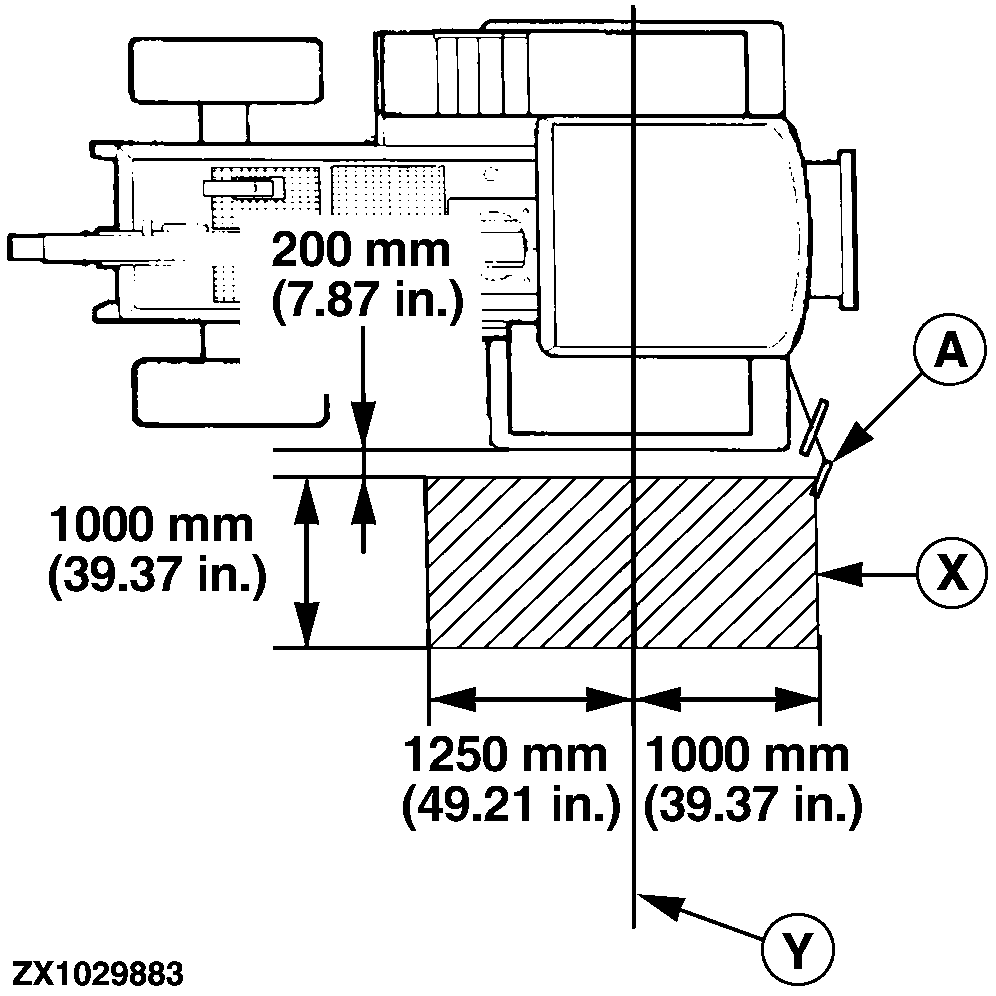

Adjust mirrors in such a way that the specified floor space (X) can be seen.


A-Mirror
X-Floor space
Y-Drivers eye level

ZX1029884
ZX1029883

OUZXMAG,0001D84 -19-06SEP04-1/1
