Installing Air Cleaner Element

IMPORTANT: Never use a wet or damp element. Make sure that rear rubber sealing rings are absolutely clean and seated correctly.

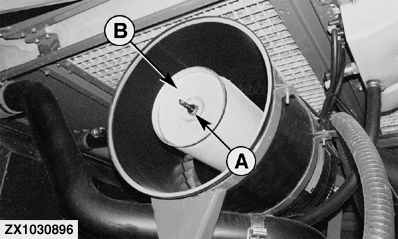

Install safety (secondary) element (B).

Tighten nut (A).

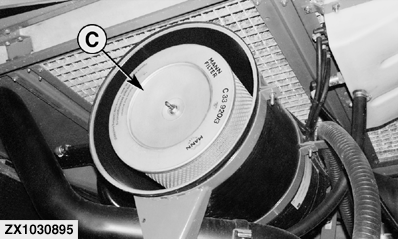

Install primary element (C).

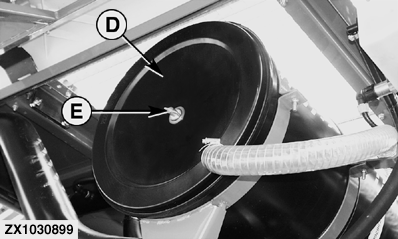

Install filter cover (D) and secure with wing nut (E).

Tighten all fixing nuts to 20 N·m (15 lb-ft).

A-Hex. Nut
B-Safety (Secondary) Element
C-Primary Filter Element
D-Filter Cover
E-Wing Nut
