Rotary Radiator Screen - Adjusting

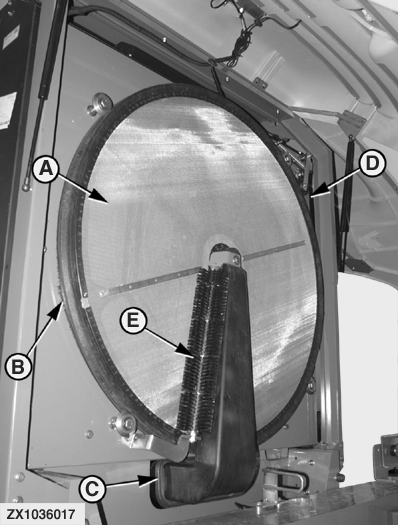

Checking Rotary Screen

    Check the following:

  • Free rotation of screen (A)
  • Screen-to-frame seal (B)
  • Suction nozzle seal (C)
  • Tension of drive belt (D)
  • Free rotation of brush (E)
  • Door frame seal


A-Screen
B-Frame Seal
C-Nozzle Seal
D-Drive Belt
E-Brush

ZX1036017

OUZXMAG,0001D8C -19-06SEP04-1/2

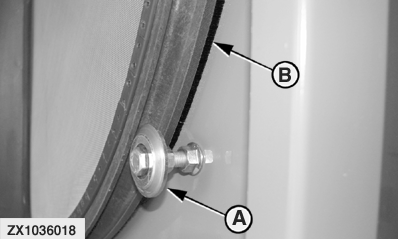

Adjusting the screen

Adjust the four guide rollers (A) so that seal (B) makes contact but is not deformed.

NOTE: When adjusting guide rollers make sure that seal always makes contact.


A-Roller
B-Seal

ZX1036018

OUZXMAG,0001D8C -19-06SEP04-2/2
