Heater Shut-Off Valve

In the summer months, disconnect heater from engine coolant circuit by closing shut-off valve (A) on engine block.

Open the shut-off valve in the cooler seasons.

Be sure to open shut-off valve before switching on heater.

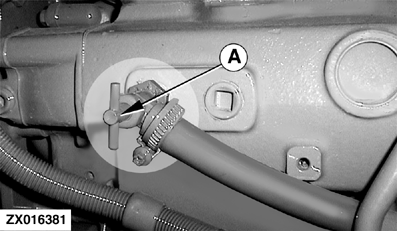

ZX016381

John Deere POWERTECH®[vv471,1] 8.1 L engine

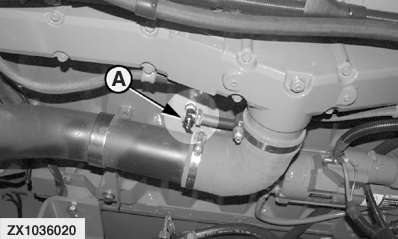

ZX1036020

John Deere POWERTECH®[vv471,1] 12.5 L engine

OUZXMAG,0001D95 -19-06SEP04-1/1
