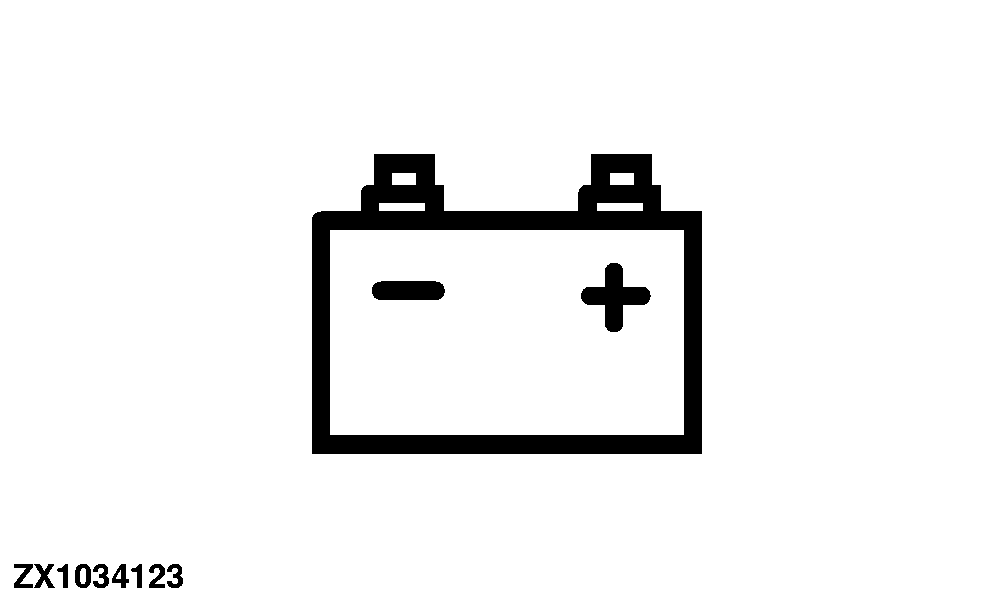

Alternator Indicator Icon

Lights up if alternator output voltage is not sufficient to charge the battery.

• Check cables and connections at alternator and battery.
• Check alternator drive belt.

If this indicator light still stays on, see your John Deere dealer.

NOTE: For a detailed description see "Alternator" in Section Service - Electrical System.

OUZXMAG,0001D98 -19-06SEP04-1/1
