Checking Belt Tensioner Spring Tension and Belt Wear (7200-7700)

Belt drive systems equipped with automatic (spring) belt tensioners (A-B) cannot be adjusted or repaired. The automatic belt tensioners are designed to maintain proper belt tension over the life of the belt. If tensioner spring tension is not within specification, replace tensioner assembly.

Checking Belt Wear

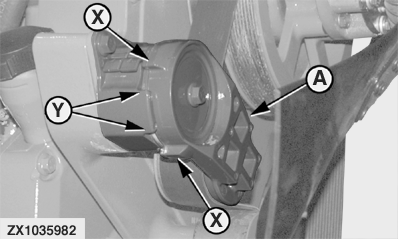

The belt tensioner is designed to operate within the limit of arm movement provided by the cast stops (X and Y) when correct belt length and geometry is used.

Visually inspect cast stops (X and Y) on belt tensioner assembly.

If the tensioner stop (X) on swing arm is hitting the fixed stop (Y), check mounting brackets (alternator, belt tensioner, idler pulley) and belt length. Replace belt as needed.

A-Fan Drive Belt Spring tensioner
B-Alternator/Compressor Belt Spring tensioner
X-Cast stop
Y-Cast stop

OUZXMAG,0001D9D -19-06SEP04-1/2

Checking Tensioner Spring Tension

A belt tension gauge will not give an accurate measure of the belt tension when automatic spring tensioner is used. Measure tensioner spring tension using a torque wrench and procedure outlined below:

Release tension on belt using a long handle (13 mm; 1/2-in.) breaker bar in tension arm.

Release tension on tension arm and remove breaker bar.

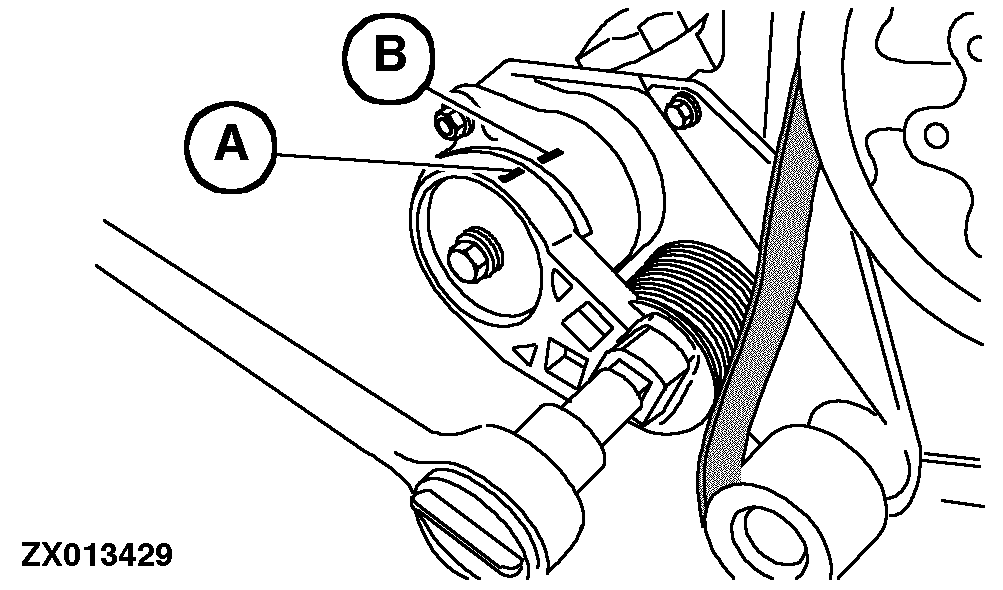

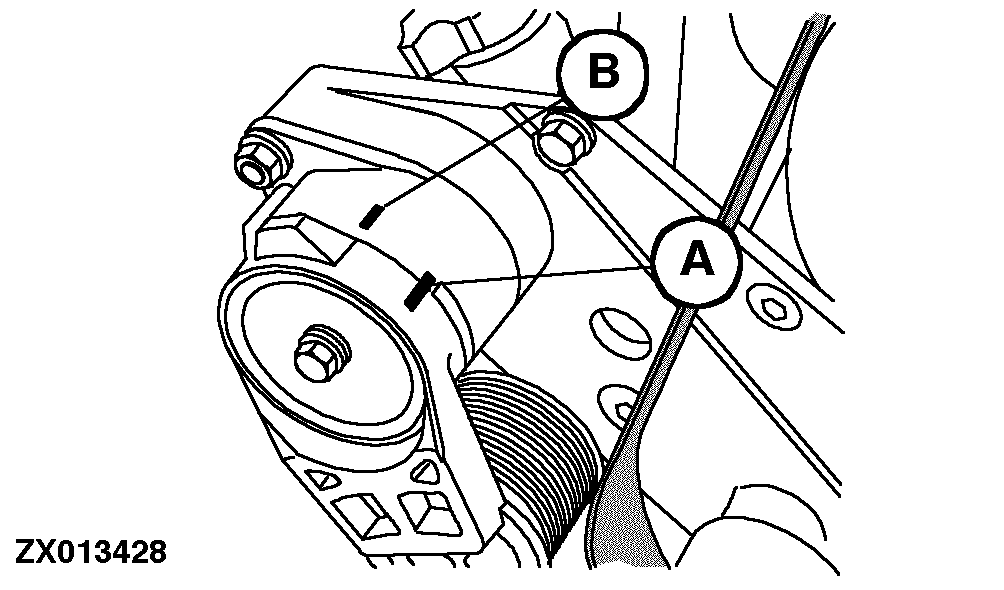

Put a mark (A) on swing arm of tensioner as shown.

Measure 25 mm (1.00 in.) from first mark (A) and put a second mark (B) on tensioner mounting base.

Rotate the swing arm using a torque wrench until marks (A) and (B) are aligned.

Record torque wrench measurement and compare with specification hereafter. Replace tensioner assembly as required.

Alternator Drive Belt Tensioner Spring Tension

Specification

Fan Drive Belt Tensioner Spring Tension

Specification

OUZXMAG,0001D9D -19-06SEP04-2/2
