Manual Actuation of the Valve for Raising/Lowering Header

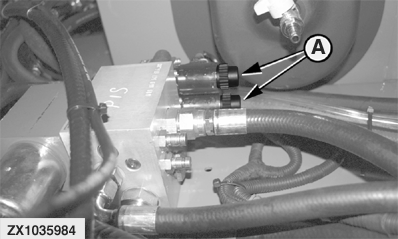

In case the system has to be tested or in the event of a fault occurring in the electrical system, the header can be raised or lowered by activating the valve manually. Open end-caps (A) to gain access to the valves .


A-End-caps

ZX1035984

OUZXMAG,0001DA1 -19-07SEP04-1/1
